Product Summary

The RDC19222-302 is a low-cost, versatile, 16-bit monolithic, state-of-the-art Resolver(/LVDT)-to-Digital Converter. The single-chip converter is available in small 40-pin DDIP, 44-pin J-Lead, and 44-pin MQFP packages and offers programmable features such as resolution, bandwidth and velocity output scaling. The RDC19222-302 is available with operating temperature ranges of 0 to +70℃, -40 to +85℃ and -55 to +125℃. Military processing is available.

Parametrics

RDC19222-302 specifications: (1)Differential Voltage: ± 10 V max; (2)single ended: ± 5 v max; (3)overload: ± 25 v continuous 100 transient; (4)Frequency: DC to 40 kHz; (5)Input Impedance: 10M Ohm min //20 pf; (6)±Sig/Ref Phase Shift: 6 deg max; (7)SIGNAL INPUT (+S, -S, SIN, +C, -C, COS): operating: 2 ± 15%Vrms; overload: ± 25 V continuous; Input Impedance: 10M Ohm min //10 pf; (8)Nominal Voltage: ±5V; (9)Voltage Range: ±5%; (10)Max Volt. w/o: ±7V; (11)Damage Current: 14 mA typ, 22 max mA(each).

Features

RDC19222-302 features: (1)+5 Volt Only Option; (2)Only Five External Passive Components; (3)Programmable: Resolution: 10-, 12-, 14-, or 16-Bit; Bandwidth: to 1200 Hz; Tracking: to 2300 RPS; (4)Differential Resolver and LVDT Input Modes; (5)Velocity Output Eliminates Tachometer; (6)Built-In-Test (BIT) Output; (7)No 180 Hang-Up; (8)Small Size: Available in DDIP, PLCC or MQFP Packages; (9)-55 to +125℃ Operating Temperature Available; (10)Programmable for LVDT input.

Diagrams

RDC19222-302 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

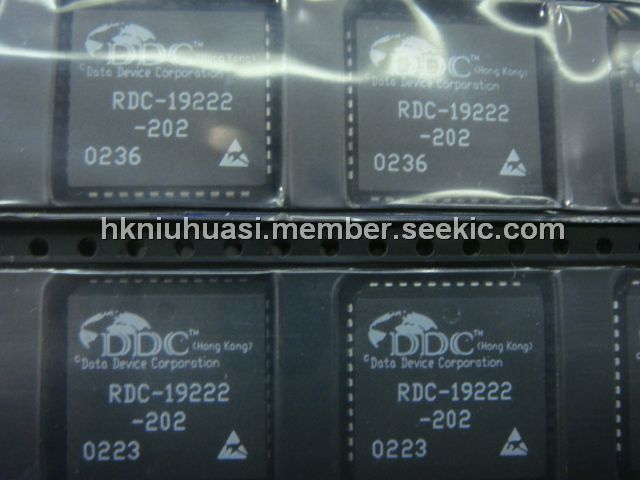

RDC19222-202
RDC19222-202
Other

Data Sheet
Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
RDC100
RDC100
ebm-papst
Fan Cords & Accessories PWM SIGNAL CONTROLLER
Data Sheet
0-1: $110.20
1-10: $101.32
10-25: $91.52
25-50: $88.20
RDC1014A09
RDC1014A09
ALPS
Industrial Motion & Position Sensors 10K ohm 14mm travel +-0.5% linearity
Data Sheet
0-1: $1.78
1-25: $1.48
25-50: $1.33
50-100: $1.18
RDC1022A05
RDC1022A05
ALPS
Industrial Motion & Position Sensors 10K ohm 22mm travel +-0.5% linearity
Data Sheet
0-1: $1.78
1-25: $1.48
25-50: $1.33
50-100: $1.18
RDC10320RB
RDC10320RB
ALPS
Industrial Motion & Position Sensors 10K ohm 32mm travel +-0.5% linearity
Data Sheet
0-1: $2.20
1-25: $1.83
25-50: $1.65
50-100: $1.46
RDC1047A03
RDC1047A03
ALPS
Industrial Motion & Position Sensors 10KOHM 47mm TRAVEL +-0.5% LINEARITY
Data Sheet
0-1: $1.72
1-25: $1.47
25-50: $1.28
50-100: $1.20

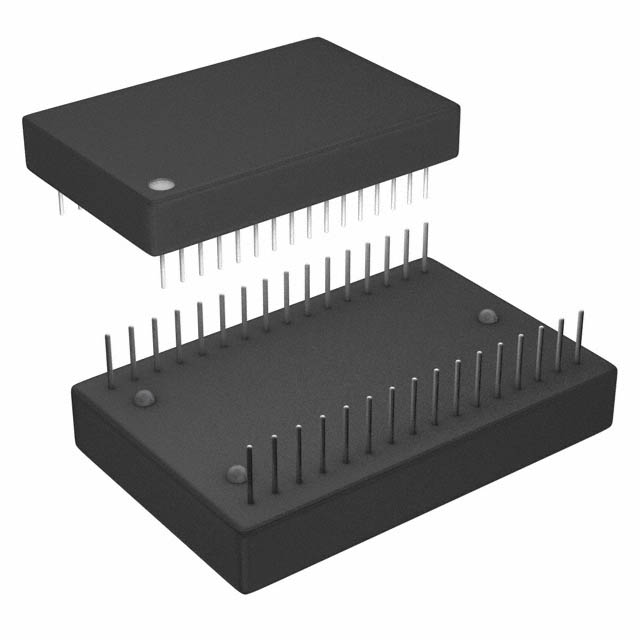

RDC1740-413B
