Product Summary
The MRF160 is an N–Channel enhancement mode MOSFET. It is designed primarily for wideband large–signal output anddriver from 30–500 MHz.
Parametrics
MRF160 absolute maximum ratings: (1)drain-gate voltage: 65V; (2)drain-source voltage: ±20V; (3)drain current-continuous: 1A; (4)total device dissipation:24W; (5)storage temperature range: -65 to 150℃; (6)operating junction temperature: 200℃.
Features
MRF160 features: (1)Guaranteed 28 V, 500 MHz performance; (2)Excellent thermal stability, ideally suited for Class A operation; (3)Facilitates manual gain control, ALC and modulation techniques; (4)100% Tested for load mismatch at all phase angles with 30:1 VSWR; (5)Low Crss – 0.8 pF Typical at VDS = 28 V.

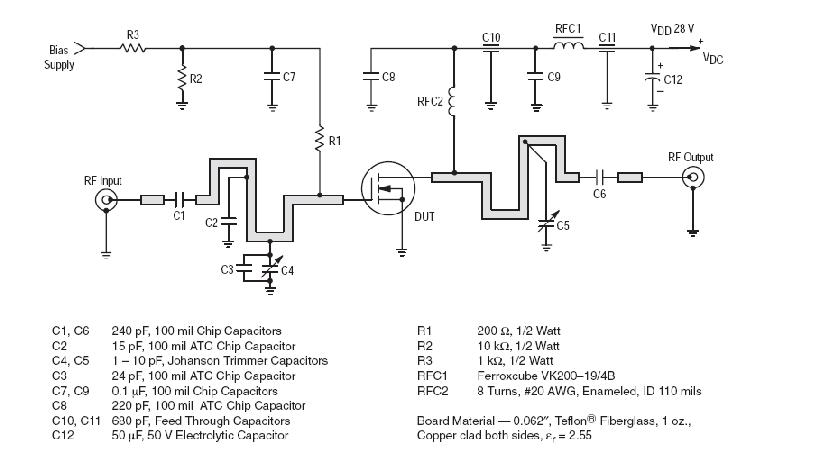

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MRF160 |
M/A-COM Technology Solutions |
Transistors RF MOSFET Power 5-500MHz 4Watts 28Volt Gain 16dB |
Data Sheet |
|
|
||||||||||||
 |
MRF16006 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
MRF16030 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
