Product Summary

The MOC3023M is a 6pin DIP photocoupler with triac driver output.

Parametrics

MOC3023M absolute maximum ratings: (1)INPUT-Forward Current: 50mA; (2)INPUT-Reverse Voltage: 6V; (3)INPUT-Power Dissipation: 70mW; (4)OUTPUT-Off-State Output Terminal Voltage: 400V; (5)OUTPUT-Peak Repetitive Surge Current: 1A; (6)OUTPUT-Collector Power Dissipation: 300mW; (7)Total Power Dissipation: 330mW; (8)Isolation Voltage:5,000V; (9)Ambient Operating Temperature Range:-40 ~ +100℃; (10)Storage Temperature Range: -55 ~ +150℃; (11)Soldering Temperature: 260℃.

Features

MOC3023M features: (1)Isolation voltage between input and output Viso : 5,000Vrms; (2)6pin DIP photocoupler, triac driver output; (3)High repetitive peak off-state voltage VDRM : Min. 400V; (4)High critical rate of rise of off-state voltage; (5)Dual-in-line package: MOC3020, MOC3021, MOC3022, MOC3023; (6)Wide lead spacing package: MOC3020M, MOC3021M, MOC3022M, MOC3023M; (7)Surface mounting package: MOC3020S, MOC3021S, MOC3022S, MOC3023S; (8)Motor Controls; (9)Solid state relays; (10)For triggering high power thyristor and triac; (11)Household use equipment.

Diagrams

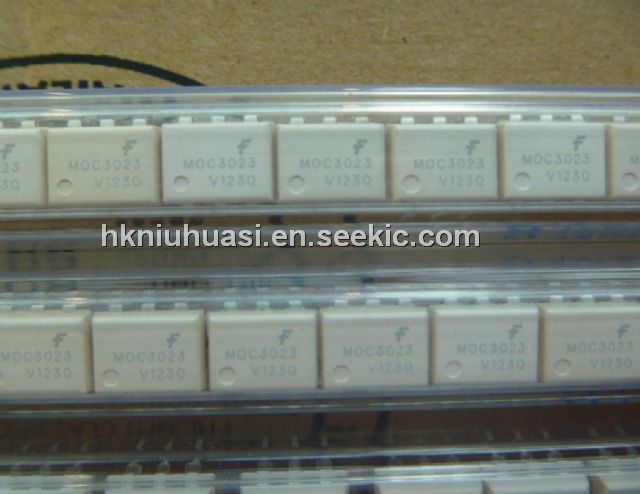

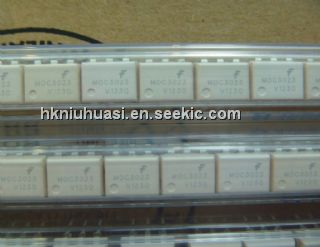

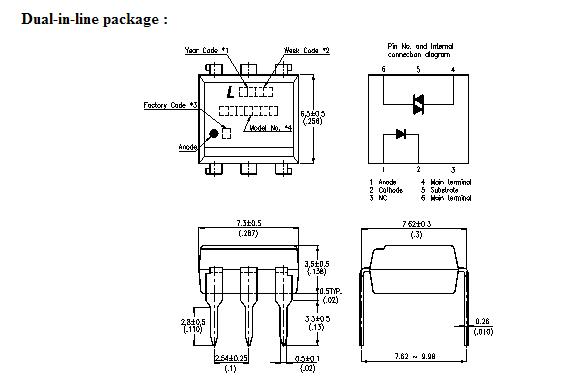

MOC3023M Dual-in-line package
