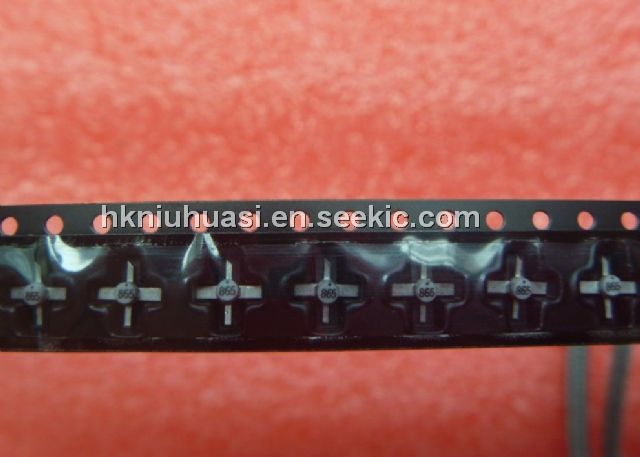

Product Summary

MGA-86576 is an economical, easy-to-use GaAs MMIC amplifier that offers low noise and excellent gain for applications from 1.5 to 8 GHz. The MGA-86576 may be used without impedance matching as a high performance 2 dB NF gain block. Alternatively, with the addition of a simple series inductor at the input, the device noise figure can be reduced to 1.6ÊdB at 4 GHz. The circuit uses state-of-the-art PHEMT technology with selfbiasing current sources, a sourcefollower interstage, resistive feedback, and on chip impedance matching networks. A patented, on-chip active bias circuit allows operation from a single +5 V power supply. Current consumption is only 16 mA.

Parametrics

MGA-86576 absolute maximum ratings: (1)Device Voltage, RF output to ground: 9V; (2)Pin CW RF Input Power: +13 dBm ; (3)Channel Temperature: 150℃; (4)Storage Temperature: -65 to 150℃.

Features

MGA-86576 features: (1)1.6 dB Noise Figure at 4 GHz; (2)23 dB Gain at 4 GHz; (3)+6 dBm P1dB at 4 GHz; (4)Single +5 V Bias Supply.

Diagrams

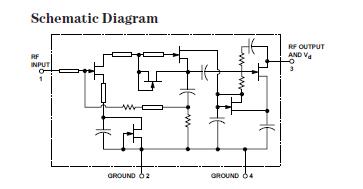

MGA-86576 Schematic Diagram
