Product Summary

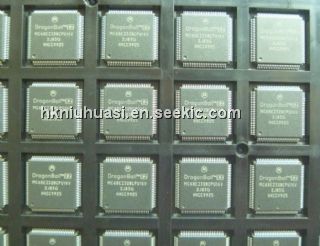

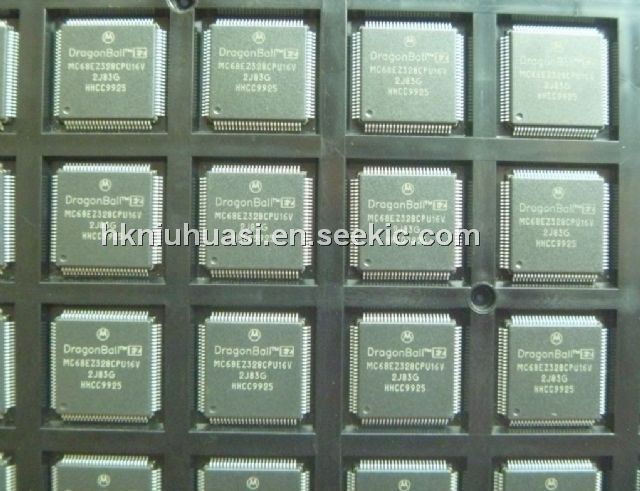

The second member of the DragonBall family, the MC68EZ328CPU16V inherits the display capability ofthe original DragonBall processor but features a more flexible LCD controller with a streamlined list of peripheralsplaced in a smaller package. This processor is mainly targeted for portable consumer products which require lessperipherals and a more flexible LCD controller. By providing 3.3V, fully static operation in efficient 100 TQFP and144 MAPBGA packages, the MC68EZ328CPU16V delivers cost-effective performance to satisfy the extensiverequirements of today’s portable consumer market.
Features
MC68EZ328CPU16V features: (1)Static 68EC000 Core Processor; (2)System Integration Module (SIM28-EZ), incorporating many functions typically related to external array logic; (3)DRAM Controller; (4)UART; (5)Serial Peripheral Interface Port; (6)16-Bit General Purpose Counter / Timer; (7)Real Time Clock / Sampling Timer; (8)LCD Controller; (9)Pulse Width Modulation (PWM) Module; (10)Built-in Emulation Function; (11)Bootstrap Mode Function; (12)Power Management; (13)Operation from DC To 16.58 MHz (processor clock); (14)Operating voltage of (3.3 +/- 10%) V; (15)Compact 100-Lead and 144-Pin MAPBGA TQFP packages.

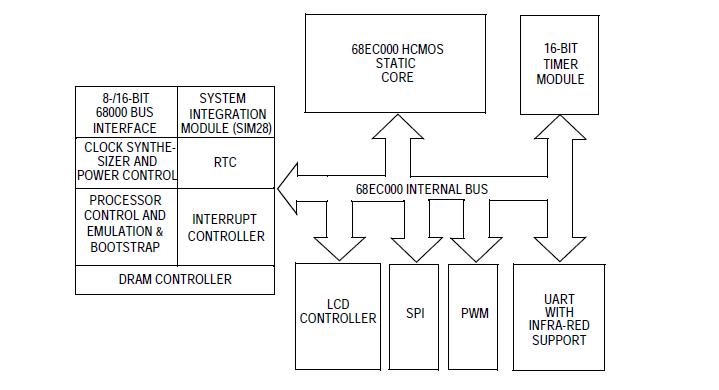

Diagrams
