Product Summary
The M27C322-100F1 is a 32 Mbit EPROM offered in the UV range (ultra violet erase). It is ideally suited for microprocessor systems requiring large data or program storage. It is organised as 2 MWords of 16 bit. The pin-out is compatible with a 32 Mbit Mask ROM.

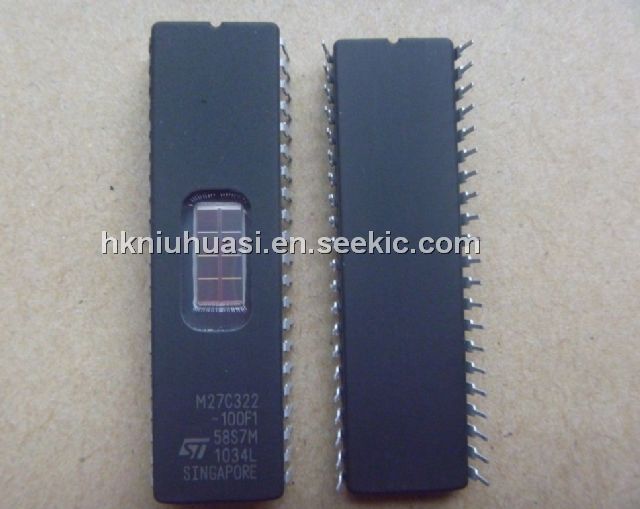

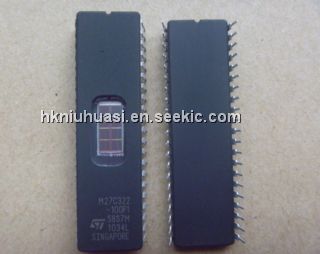

The FDIP42W (window ceramic frit-seal package) has a transparent lid which allows the user to expose the chip to ultraviolet light to erase the bit pattern. A new pattern can then be written rapidly to the device by following the programming procedure. For applications where the content is programmed only one time and erasure is not required, the M27C322-100F1 is offered in PDIP42 package.
Parametrics
M27C322-100F1 absolute maximum ratings: (1)Ambient Operating Temperature:–40 to 125℃; (2)Temperature Under Bias: –50 to 125℃; (3)Storage Temperature: –65 to 150℃; (4)Input or Output Voltage (except A9): –2 to 7 V; (5)Supply Voltage: –2 to 7 V; (6)A9 Voltage: –2 to 13.5 V; (7)Program Supply Voltage: –2 to 14 V.
Features
M27C322-100F1 features: (1)5V ± 10% supply voltage in read operation; (2)access time: 80ns ; (3)word-wide configurable; (4)32 Mbit mask ROM replacement; (5)low power consumption; (6)programming voltage: 12V ± 0.25V; (7)electronic signature.

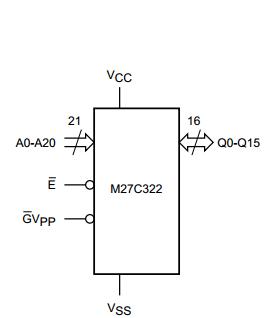

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 M27C322-100F1 |
STMicroelectronics |
EPROM 32M (2Mx16) 100ns |
Data Sheet |
Negotiable |
|
||||
