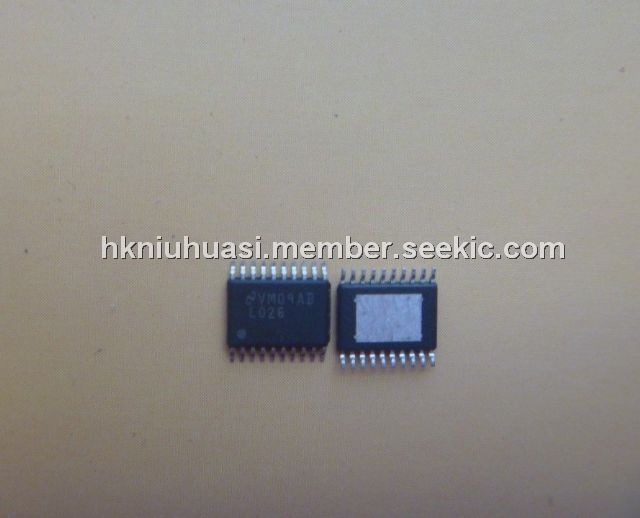

LMH0026MH

SD SDI Reclocker, TSSOP20, 4.0V, 24 mA, LMH0026MH, National Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $7.86~10.45 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $7.86~10.45

PartNumber:: LMH0026MH

Brand:: National Semiconductor - NS | Pack: TSSOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Becky's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-22

From Other Seller

Part Number:LMH0026MH
US $7.86 - 10.45
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

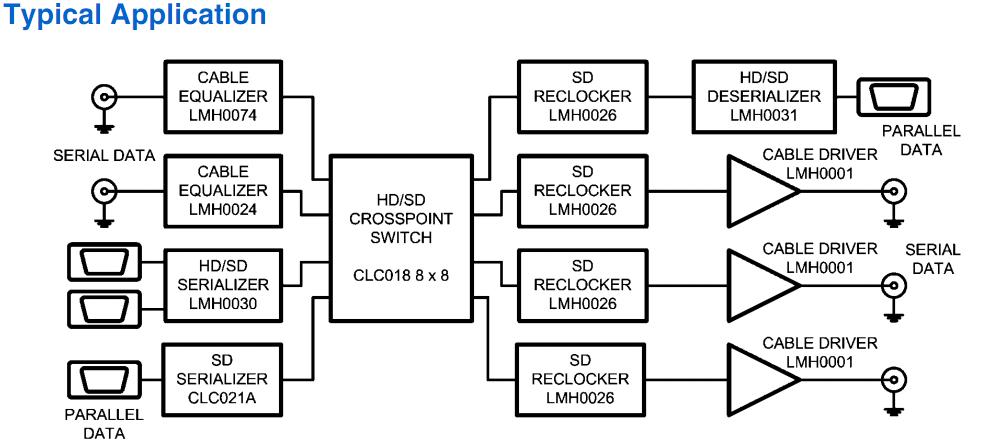

The LMH0026MH is a SD SDI Reclocker. It retimes serial digital video data conforming to the SMPTE 259M (C) standard. The LMH0026MH operates at the serial data rate of 270 Mbps and also supports DVB-ASI operation at 270 Mbps. The LMH0026MH is suitable for SDTV serial digital video interfaces for: Digital video routers and switchers, Digital video processing and editing equipment, DVB-ASI equipment and Video standards and format converters.

Parametrics

LMH0026MH absolute maximum ratings: (1)Supply Voltage (VCC–VEE): 4.0V; (2)Logic Supply Voltage (Vi): VEE-0.15V to VCC +0.15V; (3)Logic Output Voltage (Vo): VEE-0.15V to VCC +0.15V; (4)Logic Output Source/Sink Current: ±8 mA; (5)Serial Data Input Voltage (VSDI): VCC to VCC-2.0V; (6)Serial Data Output Sink Current (ISDO): 24 mA; (7)Storage Temp. Range: -65 to +150℃; (8)Junction Temperature: +150℃; (9)Lead Temperature (Soldering 4 Sec): +260℃ (Pb-free); (10)ESD Rating (HBM): 7 kV; (11)ESD Rating (MM): 350V; (12)ESD Rating (CDM): 1250V.

Features

LMH0026MH features: (1)Supports SMPTE 259M (C) serial digital video standard; (2)Supports 270 Mbps serial data rate operation; (3)Supports DVB-ASI at 270 Mbps; (4)Single 3.3V supply operation; (5)330 mW typical power consumption; (6)Two differential, reclocked outputs; (7)Choice of second reclocked output or low-jitter, differential, data-rate clock output; (8)Single 27 MHz external crystal or reference clock input; (9)Lock Detect indicator output; (10)Output mute function for data and clock; (11)Auto/Manual reclocker bypass; (12)Differential LVPECL compatible serial data inputs and outputs; (13)LVCMOS control inputs and indicator outputs; (14)20-Pin e-TSSOP package; (15)Industrial temperature range: -40 to +85℃; (16)Footprint compatible with the LMH0046 and LMH0346.
