Product Summary
The KSD1589 is a Low Frequency Power Amplifier.
Parametrics
KSD1589 absolute maximum ratings: (1)Collector-Base Voltage: 150 V; (2)Collector-Emitter Voltage: 100 V; (3)Emitter-Base Voltage: 7 V; (4)Collector Current (DC): 5 A; (5)Collector Current (Pulse): 8 A; (6)Base Current: 0.5 A; (7)Collector Dissipation: 1.5 W; (8)Collector Dissipation: 20 W; (9)Junction Temperature: 150℃; (10)Storage Temperature: - 55 ~ 150℃.
Features
KSD1589 features: (1)Low Speed Switching Industrial Use; (2)Complement to KSB1098.

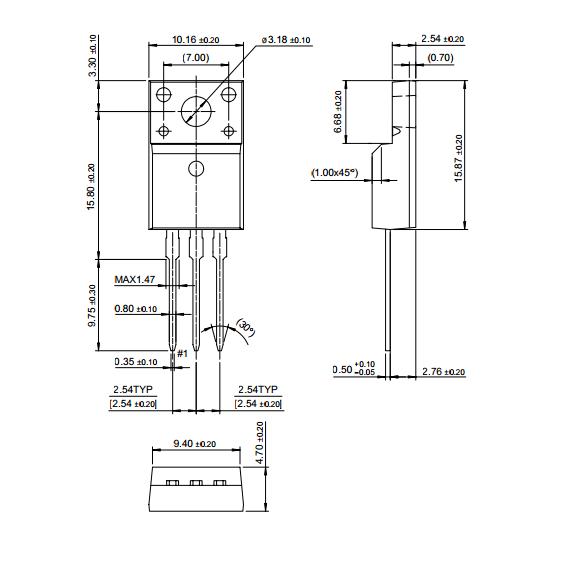

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 KSD1589 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
KSD1589OTU |
Fairchild Semiconductor |
Transistors Darlington NPN Sil Darl Trans |
Data Sheet |
Negotiable |
|
||||||||||||
|
KSD1589RTU |
Fairchild Semiconductor |
Transistors Darlington NPN Sil Darl Trans |
Data Sheet |
|
|
||||||||||||
|
KSD1589YTU |
Fairchild Semiconductor |
Transistors Darlington NPN Sil Darl Trans |
Data Sheet |
Negotiable |
|
||||||||||||
