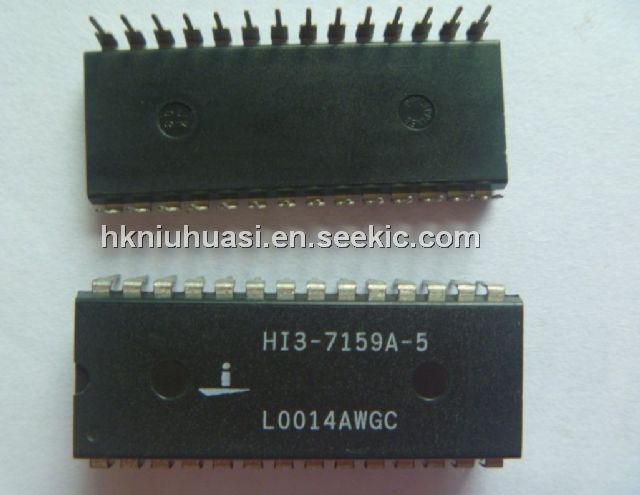

Product Summary
The HI3-7159A-5 is a monolithic A/D converter that uses a unique dual slope technique which allows it to resolve input changes as small as 1 part in 200,000 (10μV) without the use of critical external components. Its digital autozeroing feature virtually eliminates zero drift over temperature. The device is fabricated in low noise BiMOS process, resulting in exceptional linearity and noise performance.The HI3-7159A-5 is designed to be easily interfaced with most microprocessors through either of its three serial and one parallel interface modes. In the serial modes, any one of four common baud rates is available. Applications include Weigh Scales, Part Counting Scales, Laboratory Instruments, Process Control/Monitoring, Energy Management and Seismic Monitoring.
Parametrics
HI3-7159A-5 absolute maximum ratings: (1)Supply Voltage-VCC to GND (AGND/DGND): -0.3V < VCC < +6V; (2)Supply Voltage-VEE to GND (AGND/DGND): +0.3V < VCC < -6V; (3)Digital Pins, (pins 15 - 28): DGND -0.3V < VD <VCC +0.3V; (4)Analog Pins, (pins 2 - 13): VEE -0.3V < VA < VCC +0.3V.
Features
HI3-7159A-5 features: (1)±200,000 Count A/D Converter; (2)2V Full Scale Reading With 10μV Resolution; (3)15 Conversions Per Second in 51/2 Digit Mode; (4)60 Conversions Per Second in 41/2 Digit Mode; (5)Serial or Parallel Interface Modes; (6)Four Selectable Baud Rates; (7)Differential Analog Input; (8)Differential Reference Input; (9)Digital Autozero.

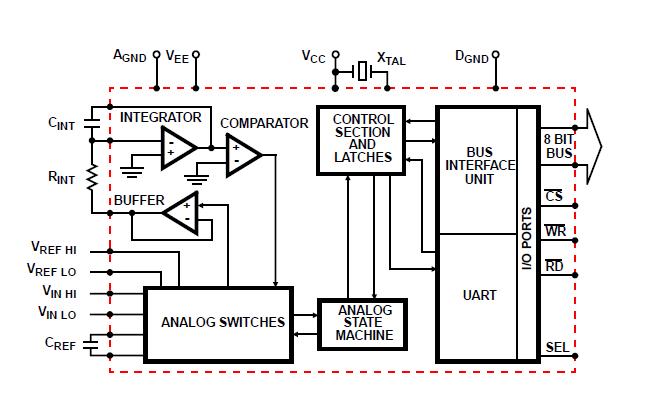

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 HI3-7159A-5 |
|
CONV A/D 5.5 DIGITIC MPU 28-DIP |
Data Sheet |
Negotiable |
|
||||
|
HI3-7159A-5Z |
|
IC ADC 5-1/2 DIGIT 28-PDIP |
Data Sheet |
Negotiable |
|
||||
