Product Summary

Low noise and high performance are key words describing the unity gain stable HA2-5102-5. This general purpose dual amplifier HA2-5102-5 offers an array of dynamic specifications including 1V/μs slew rate min), AVCL ≥ 1, and 8MHz bandwidth (typ). Complementing these outstanding parameters is a very low noise specification of 4.3nV/√Hz at 1kHz (typ), 6nV/√Hz (max). Fabricated using the Intersil standard high frequency D.I. process, the operational amplifier HA2-5102-5 also offers excellent input specifications such as 2.5mV (max) offset voltage and 75nA (max) offset current. Complementing these specifications are 100dB (min) open loop gain and 60dB channel separation (min). Economically, the HA2-5102-5 also consumes a very moderate amount of supply power 180mW/ package.

Parametrics

HA2-5102-5 absolute maximum ratings: (1)Voltage Between V+ and V- Terminals: 40V; (2)Differential Input Voltage: 7V; (3)Voltage at Either Input Terminal: V+ to VPeak; (4)Output Current: Indefinite(One Amplifier Shorted to Ground); (5)Junction Temperature (TJ): +175℃; (6)Storage Temperature Range: -65℃ to +150℃; (7)ESD Rating: <2000V; (8)Lead Temperature (Soldering 10s): +300℃.

Features

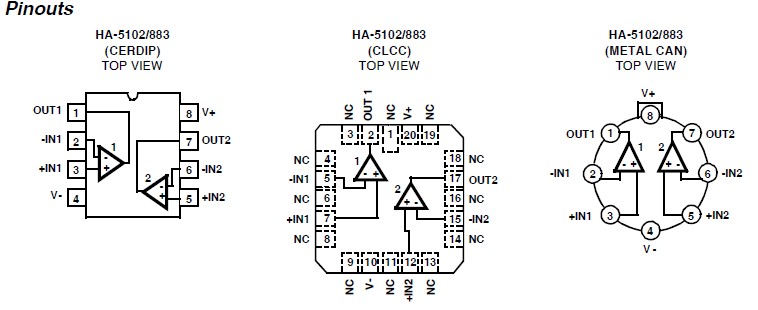

HA2-5102-5 features: (1)This Circuit is Processed in Accordance to MIL-STD-883 and is Fully Conformant Under the Provisions of Paragraph 1.2.1.; (2)Low Input Noise Voltage Density at 1kHz . 6nV/√Hz (Max) 4.3nV/√Hz (Typ); (3)High Slew Rate: 1V/μs (Min), 3V/μs (Typ); (4)Unity Gain Bandwidth: 8MHz (Typ); (5)High Open Loop Gain (Full Temp): 100kV/V (Min), 250kV/V (Typ); (6)High CMRR, PSRR (Full Temp): 86dB (Min), 100dB(Typ); (7)Low Offset Voltage Drift: 3μV/℃ (Typ); (8)No Crossover Distortion; (9)Standard Dual Pinout.
