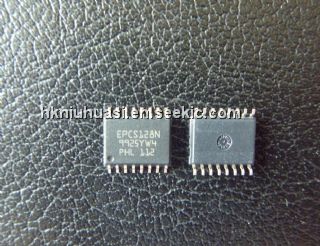

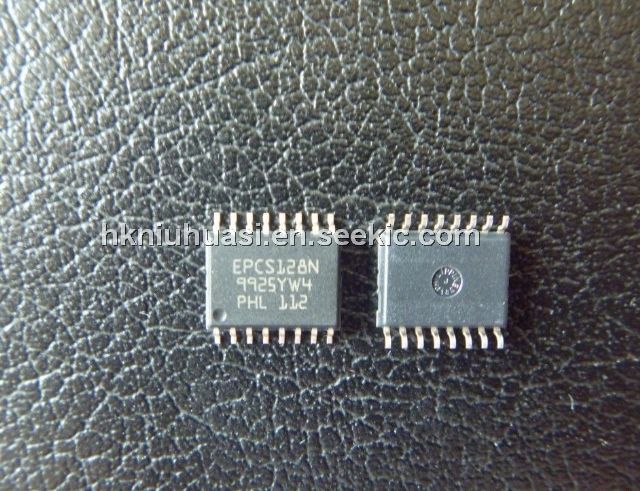

Product Summary

The EPCS128SI16N is a serial configuration device. With SRAM-based devices that support active serial configuration, configuration data must be reloaded each time the device powers up, the system reconfigures, or when new configuration data is required. Serial configuration devices are flash memory devices with a serial interface that can store configuration data for FPGA devices that
support active serial configuration and reload the data to the device upon power-up or reconfiguration.

Parametrics

EPCS128SI16N absolute maximum ratings: (1)Supply voltage: –0.2 to 4.0 V; (2)DC input voltage: –0.5 to 4.0 V; (3)DC VCC or GND current: 15mA; (4)DC output current per pin: -25 to 25mA; (5)Power dissipation: 54mW; (6)Storage temperature: –65 to 150℃; (7)Ambient temperature:–65 to 135℃; (8)Junction temperature: -135℃.

Features

EPCS128SI16N features: (1)Easy-to-use four-pin interface; (2)Low cost, low-pin count, and non-volatile memory; (3)Low current during configuration and near-zero standby mode current ; (4)2.7-V to 3.6-V operation; (5)Re-programmable memory with more than 100,000 erase/program cycles; (6)Write protection support for memory sectors using status register bits; (7)In-system programming support with SRunner software driver.

Diagrams

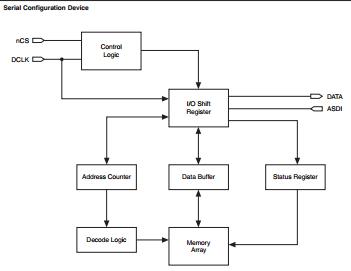

EPCS128SI16N Block Diagram
