Product Summary

The EL8108IS is a dual current feedback operational amplifier designed for video distribution solutions. This device features a high drive capability of 450mA while consuming only 5mA of supply current per amplifier and operating from a single 5V to 12V supply. The EL8108IS is available in the industry standard 8-pin SO as well as the thermally-enhanced 16-pin QFN package. Both are specified for operation over the full -40℃ to +85℃ temperature range. The EL8108IS has control pins C0 and C1 for controlling the bias and enable/disable of the outputs. The EL8108IS is ideal for driving multiple video loads while maintaining linearity.

Parametrics

EL8108IS absolute maximum ratings: (1)VS+ Voltage to Ground: -0.3V to +13.2V; (2)VIN+ Voltage: GND to VS+; (3)Current into any Input: 8mA; (4)Continuous Output Current: 75mA; (5)Ambient Operating Temperature Range: -40℃ to +85℃; (6)Storage Temperature Range: -60℃ to +150℃; (7)Operating Junction Temperature: +150℃.

Features

EL8108IS features: (1)Drives up to 450mA from a +12V supply; (2)20VP-P differential output drive into 100?; (3)-85dBc typical driver output distortion at full output at 150kHz; (4)-70dBc typical driver output distortion at 3.75MHz; (5)Low quiescent current of 5mA per amplifier; (6)300MHz bandwidth.

Diagrams

EL8108IS Pinouts

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

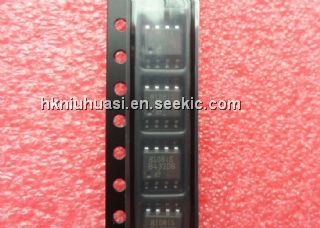

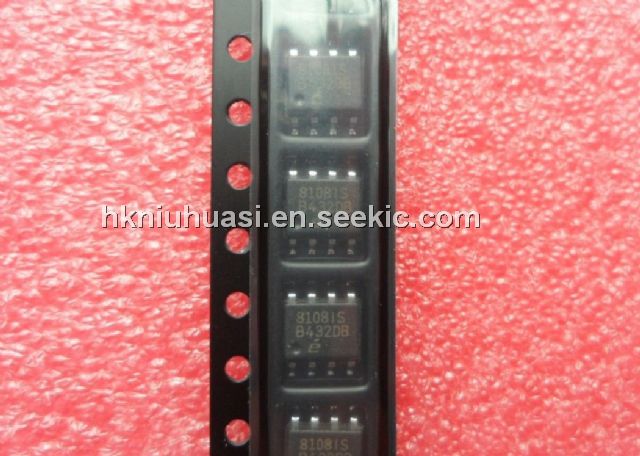

EL8108IS
EL8108IS


IC AMP VIDEO DISTRIBUTION 8-SOIC

Data Sheet

Negotiable
EL8108IS-T13
EL8108IS-T13


IC AMP VIDEO DISTRIBUTION 8-SOIC

Data Sheet

Negotiable
EL8108IS-T7
EL8108IS-T7


IC AMP VIDEO DISTRIBUTION 8-SOIC

Data Sheet

Negotiable
EL8108ISZ
EL8108ISZ


IC AMP VIDEO DISTRIBUTION 8SOIC

Data Sheet

Negotiable
EL8108ISZ-T13
EL8108ISZ-T13


IC AMP VIDEO DISTRIBUTION 8SOIC

Data Sheet

Negotiable
EL8108ISZ-T7
EL8108ISZ-T7


IC AMP VIDEO DISTRIBUTION 8SOIC

Data Sheet

Negotiable
