Product Summary

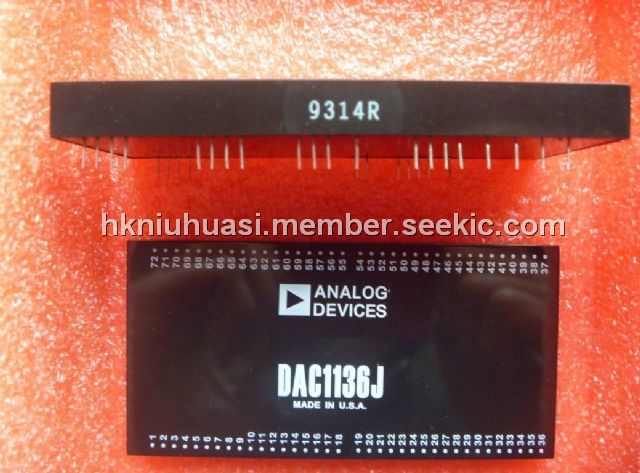

The DAC1136J is a complete self-contained current or voltage output modular digital-to-analog converter with resolutions and accuracies of 16 bits. It combines precision current sources with state-of-the-art steering switches to produce a vaery linear output.

Parametrics

DAC1136J absolute maximum ratings: (1)operating temperature: 0 to 70℃; (2)stirage temperature: -55 to 85℃.

Features

DAC1136J features: (1)16-bit resolution and accuracy; (2)low cost; (3)nolinearity 1/2LSB max; (4)seeting to 1/2LSB max in 6us.

Diagrams

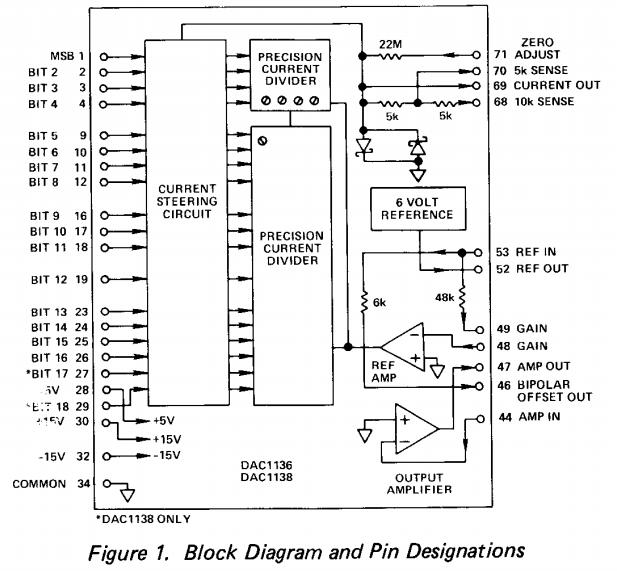

DAC1136J block diagram
