Product Summary

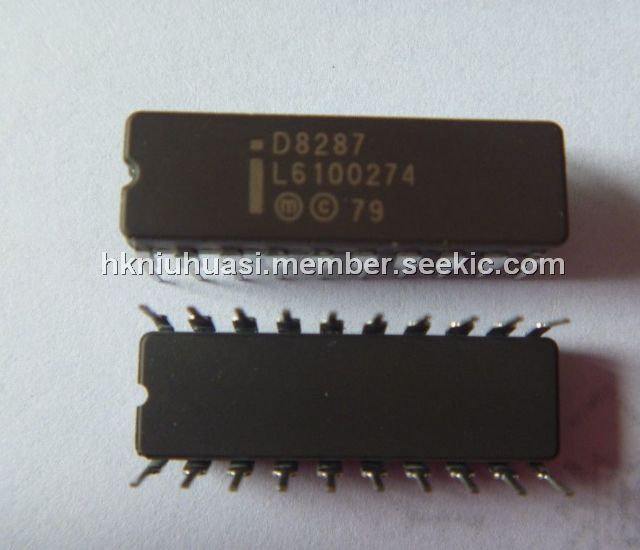

The D8287 is an 8-bit bipolar tranceiver with 3-state outputs. The D8287 invers the input data at its otuputs.Thus, a wide variety of applications for buffering in microcomputer systems can be met.
Parametrics
D8287 absolute maximum ratings: (1)case temperature under bias: -55 to 125℃; (2)storage temperature: -65 to 150℃; (3)all output and supply voltages: -0.5 to 7V; (4)all input voltages: -1.0 to 5.5V; (5)power dissipation: 1.0W.
Features
D8287 features: (1)high output drive capbility for driving system data bus; (2)fully parallel 8-bit transceivers; (3)3-state outputs; (4)no output low noise when entering or leaving high impedance state.

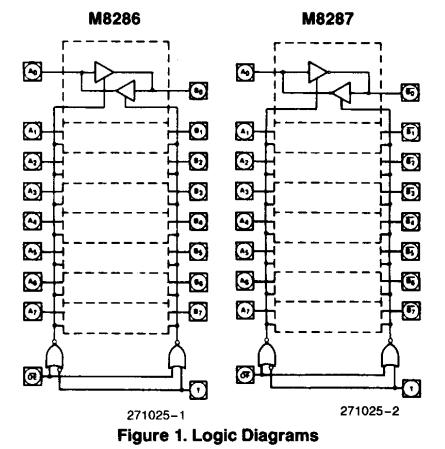

Diagrams
 |
