Product Summary
The CY7C265-15WC is a 8192 x 8 registered PROM. It is organized as 8,192 words by 8 bits wide, and has a pipeline output register. In addition, the CY7C265-15WC features a programmable initialize byte that may be loaded into the pipeline register with the initialize signal. The programmable initialize byte is the 8,193rd byte in the PROM and its value is programmed at the time of use.
Parametrics
CY7C265-15WC absolute maximum ratings: (1)Storage Temperature: –65 to +150℃; (2)Ambient Temperature with Power Applied: –55 to +125℃; (3)Supply Voltage to Ground Potential: –0.5V to +7.0V; (4)DC Voltage Applied to Outputs in High Z State: –0.5V to +7.0V; (5)DC Input Voltage: –3.0V to +7.0V; (6)DC Program Voltage: 13.0V; (7)UV Exposure: 7258 Wsec/cm; (8)Static Discharge Voltage: >2001V; (9)Latch-Up Current: >200 mA.
Features
CY7C265-15WC features: (1)CMOS for optimum speed/power; (2)High speed (Commercial): 15 ns address set-up; 12 ns clock to output; (3)Low power: 660 mW (Commercial); (4)On-chip edge-triggered registers: Ideal for pipelined microprogrammed systems; (5)EPROM technology: 100% programmable; Reprogrammable (CY7C265W); (6)5V ±10% VCC, commercial and military; (7)Capable of withstanding >2001V static discharge; (8)Slim 28-pin, 300-mil plastic or hermetic DIP.

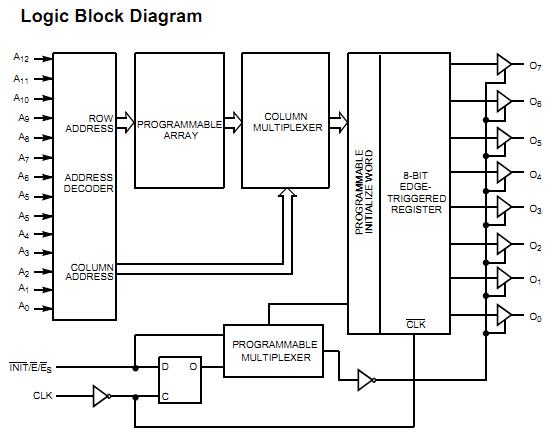

Diagrams
 |
