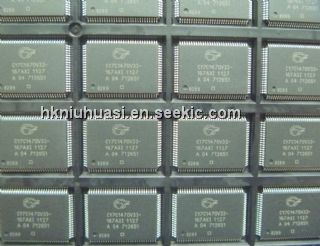

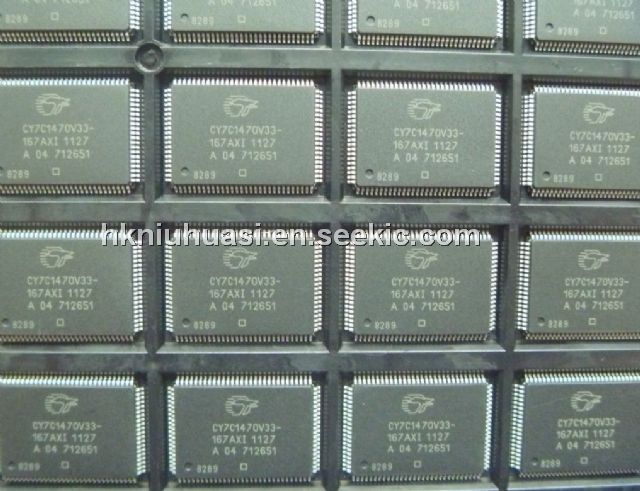

CY7C1470V33-167AXI

Semiconductor, Fast clock-to-output time, 20 mA, 0.5V, QFP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $32.15~38.32 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	38.32 / Piece
50 ~ 500 :	35.00 / Piece
1000 ~ 2000 :	32.15 / Piece

PartNumber:: CY7C1470V33-167AXI

Brand:: Cypress Semiconductor - Cypress | Pack: QFP | D/C: 11+

Availability:: Supply Ability: 1/Year Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Becky's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-12-23

From Other Seller

Part Number:CY7C1470V33-167AXI
US $32.15 - 38.32
Quantity:

piece

Product Summary

The CY7C1470V33-167AXI is a Synchronous pipelined burst SRAM. It is designed to support unlimited true back-to-back Read/Write operations with no wait states. The CY7C1470V33-167AXI is equipped with the advanced (NoBL) logic required to enable consecutive Read/Write operations with data being transferred on every clock cycle. This feature dramatically improves the throughput of data in systems that require frequent Write/Read transitions. The CY7C1470V33-167AXI is pin compatible and functionally equivalent to ZBT devices.

Parametrics

CY7C1470V33-167AXI absolute maximum ratings: (1)Storage Temperature: –65℃ to +150℃; (2)Ambient Temperature with Power Applied:–55℃ to +125℃; (3)Supply Voltage on VDD Relative to GND: –0.5V to +4.6V; (4)Supply Voltage on VDDQ Relative to GND: -0.5V to +VDD; (5)DC to Outputs in Tri-State: –0.5V to VDDQ + 0.5V; (6)DC Input Voltage:–0.5V to VDD + 0.5V; (7)Current into Outputs (LOW): 20 mA; (8)Static Discharge Voltage: > 2001V; (9)Latch-up Current: > 200 mA.

Features

CY7C1470V33-167AXI features: (1)Supports 250-MHz bus operations with zero wait states—Available speed grades are 250, 200 and 167 MHz; (2)Fully registered (inputs and outputs) for pipelined operation; (3)Byte Write capability; (4)Single 3.3V power supply; (5)3.3V/2.5V I/O power supply; (6)Fast clock-to-output time; (7)Clock Enable (CEN) pin to suspend operation; (8)IEEE 1149.1 JTAG Boundary Scan compatible; (9)Burst capability—linear or interleaved burst order.
