Product Summary
The BZX84C10LT1 is a surface mount Zener diode.
Parametrics
BZX84C10LT1 absolute maximum ratings: (1)Forward voltage, VF: 0.9V; (2)Power dissipation, Pd: 300mW; (3)Thermal resistance, junction to ambient air, RJA: 417℃/W; (4)Operating and storage temperature range, TJ, TSTG: -65 to +150℃.
Features
BZX84C10LT1 features: (1)Planar die construction; (2)350mW power dissipation; (3)Zener voltage from 2.4V to 39V; (4)Ideally suited for automated assembly processes; (5)Lead free/RoHS compliant; (6)Qualified to AEC-Q101 standards for high reliability.

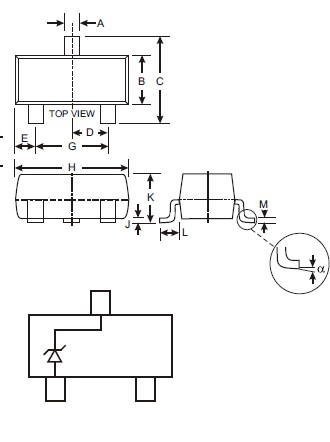

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BZX84C10LT1 |
ON Semiconductor |
Zener Diodes 10V 225mW |
Data Sheet |
Negotiable |
|
||||||||||||
|
BZX84C10LT1G |
ON Semiconductor |
Zener Diodes 10V 225mW |
Data Sheet |
|
|
||||||||||||
