Product Summary
The BYW80-200 is a high efficiency fast recovery rectifier diode. It is suited for switch mode power supply and high frequency DC to DC converters. Packaged in TO-220AC, or ISOWATT220AC, the BYW80-200 is intended for use in low voltage, high frequency inverters, free wheeling and polarity protection applications.
Parametrics
BYW80-200 absolute maximum ratings: (1)RMS forward current:20A; (2)Average forward current:10A; (3)Surge non repetitiveforward current:100A; (4)Storage and junction temperature range:-65 to 150℃.
Features
BYW80-200 features: (1)suited for SMPS; (2)very low forward losses; (3)negligible switching losses; (4)high surge current capability; (5)high avalanche energy capability; (6)insulated version(ISOWATT220AC): Insulating voltage = 2000 V DC, Capacitance = 12 pF.

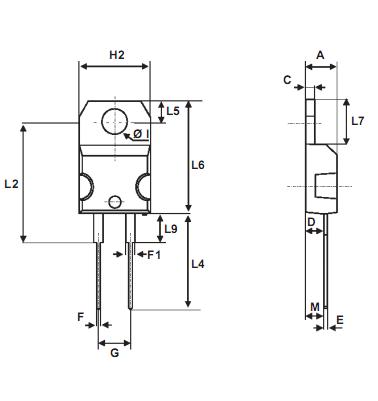

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BYW80-200 |
STMicroelectronics |
Rectifiers 20 Amp 200 Volt |
Data Sheet |
Negotiable |
|
||||||||||||
 |
BYW80-200G |
ON Semiconductor |
Rectifiers 200V 8A UltraFast |
Data Sheet |
|
|
||||||||||||
