Product Summary
The BAS40-06-V-GS08 is a Small Signal Schottky Diode.
Parametrics
BAS40-06-V-GS08 absolute maximum ratings: (1)Repetitive peak reverse voltage VRRM = VRWM = VR 40 V; (2)Forward continuous current IF 200 mA; (3)Surge forward current tp < 1 s IFSM 600 mA; (4)Power dissipation1) Ptot 200 mW; (5)Thermal resistance junction to ambient air RthJA 5001) K/W; (6)Junction temperature Tj: 125℃; (7)Storage temperature range Tstg: - 65 to + 125℃.
Features
BAS40-06-V-GS08 features: (1)These diodes feature very low turn-on voltage and fast switching; (2)These devices are protected by a PN junction guard ring against excessive volt-age, such as electrostatic discharges; (3)Lead (Pb)-free component; (4)Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC.

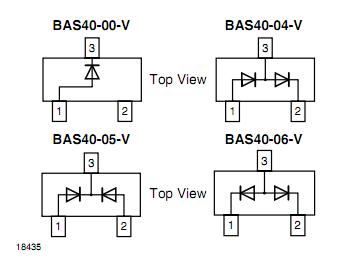

Diagrams
