Product Summary
The AT49BV160D-70TU is a 2.7-volt 16-megabit Flash memory organized as 1,048,576 words of 16 bits each. The memory is divided into 39 sectors for erase operations. The AT49BV160D-70TU is offered in a 48-lead TSOP package. The device has CE and OE control signals to avoid any bus contention. This device can be read or reprogrammed using a single power supply, making it ideally suited for in-system programming.
Parametrics
AT49BV160D-70TU absolute maximum ratings: (1)Temperature Under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)All Input Voltages (including NC Pins) with Respect to Ground:-0.6V to +6.25V; (4)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V; (5)Voltage on VPP with Respect to Ground: -0.6V to +10.0V.
Features
AT49BV160D-70TU features: (1)Single Voltage Read/Write Operation: 2.65V to 3.6V; (2)Access Time – 70 ns; (3)Sector Erase Architecture; (4)Fast Word Program Time – 10 μs; (5)Fast Sector Erase Time – 100 ms; (6)Suspend/Resume Feature for Erase and Program; (7)Low-power Operation; (8)VPP Pin for Write Protection and Accelerated Program Operation; (9)WP Pin for Sector Protection; (10)RESET Input for Device Initialization; (11)Flexible Sector Protection; (12)TSOP Package ; (13)Top or Bottom Boot Block Configuration Available; (14)128-bit Protection Register; (15)Minimum 100,000 Erase Cycles; (16)Common Flash Interface (CFI); (17)Green (Pb/Halide-free) Packaging.

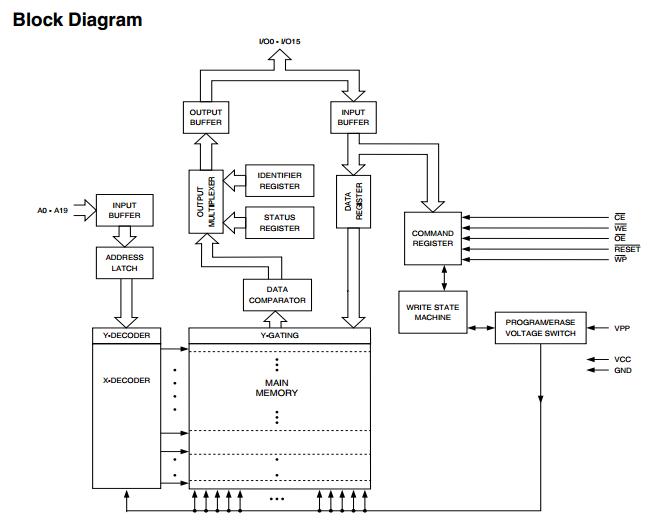

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

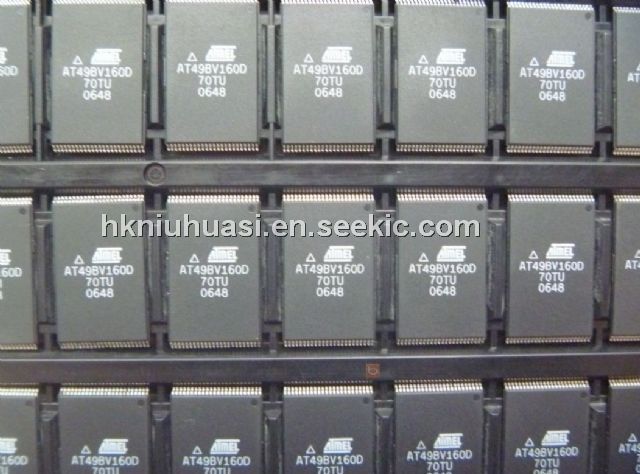

AT49BV160D-70TU |
Atmel |
Flash 16M 3V ASYNC BTTM BOOT - 70NS |
Data Sheet |
Negotiable |
|
|||||||||||||
