Product Summary
The AP9960GM is an Advanced Power MOSFET from APEC. It can provide the designer with the best combination of fast switching, ruggedized device design, ultra low on-resistance and cost-effectiveness.
Parametrics
AP9960GM absolute maximum ratings: (1)Drain-Source Voltage: 40V; (2)Gate-Source Voltage ± 20V; (3)Continuous Drain Current: 7.8A; (4)Continuous Drain Current: 6.2A; (5)Pulsed Drain Current: 20A; (6)Total Power Dissipation: -55 to 150℃; (7)Operating Junction Temperature Range: -55 to 150℃; (8)Linear Derating Factor: 0.016; (9)Storage Temperature Range: -55 to 150℃.
Features
AP9960GM features: (1)low on-resistance; (2)fast switching speed; (3)surface mount package.

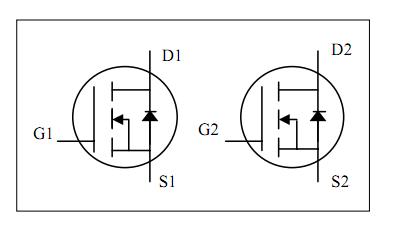

Diagrams
 |
