Product Summary

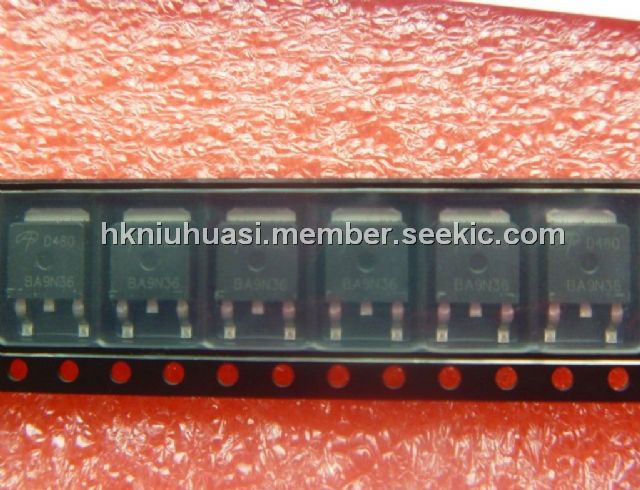

The AOD480 is an N-Channel Enhancement Mode Field Effect Transistor.The AOD480 uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge. This device is suitable for use in PWM, load switching and general purpose applications. Standard product AOD480 is Pb-free (meets ROHS & Sony 259 specifications). The AOD480 is electrically identical.

Parametrics

AOD480 absolute maximum ratings: (1)drain source voltage, VDS: 30V; (2)pulsed drain current, IDM: 45A; (3)avalanche current, IAR: 13A; (4)repetitive avalanche energy, EAR: 25mJ; (5)power dissipation, PD: 33W; (6)junction and storage temeperature: -55 to 175℃.

Features

AOD480 features: (1)VDS (V) = 30V; (2)ID = 25A (VGS = 10V) ; (3)RDS(ON) <23 mΩ (VGS = 10V) ; (4)RDS(ON) <36 mΩ (VGS = 4.5V).

Diagrams

AOD480 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AOD480
AOD480

MOSFET N-CH 30V 25A TO-252
Data Sheet
0-1: $0.34
1-25: $0.23
25-100: $0.19
100-250: $0.15
250-500: $0.13
500-1000: $0.10
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AOD400
AOD400
Other

Data Sheet
Negotiable
AOD402
AOD402
Other

Data Sheet
Negotiable
AOD406
AOD406
Other

Data Sheet
Negotiable
AOD407
AOD407

MOSFET P-CH -60V -12A TO-252
Data Sheet
0-1: $0.44
1-25: $0.34
25-100: $0.30
100-250: $0.26
250-500: $0.22
500-1000: $0.18
AOD408
AOD408
Other

Data Sheet
Negotiable
AOD409
AOD409

MOSFET P-CH -60V -26A TO-252
Data Sheet
0-1: $0.58
1-25: $0.45
25-100: $0.40
100-250: $0.34
250-500: $0.29
500-1000: $0.23
