Product Summary

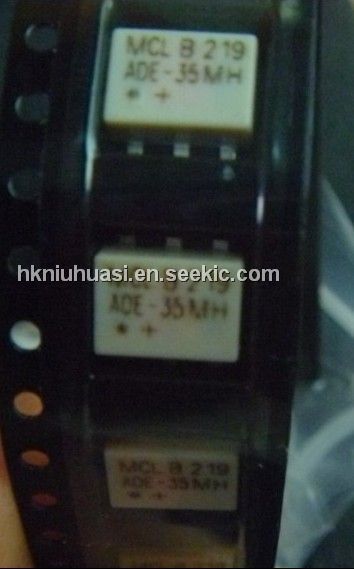

The ADE-35MH is a Frequency Mixer with good L-R isolation. Applications include PCS, MMDS, ISM and instrumentation.
Parametrics
ADE-35MH absolute maximum ratings: (1)Operating Temperature: -40℃ to 85℃; (2)Storage Temperature: -55℃ to 100℃; (3)RF Power: 200mW; (4)IF Current: 40mA.
Features
ADE-35MH features: (1)low conversion loss, 6.9 dB typ.; (2)good L-R isolation, 33 dB typ.; L-I isolation, 28 dB typ.; (3)low profile package; (4)aqueous washable; (5)protected by U.S. Patent 6,133,525.

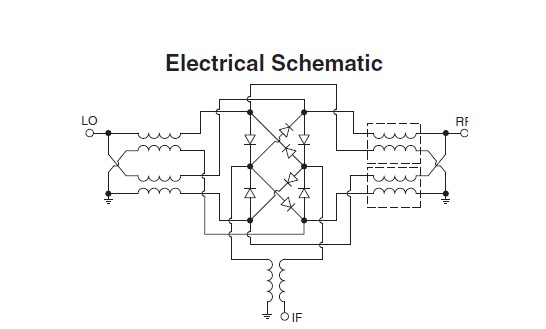

Diagrams
