Product Summary
The ADE-1ASK MINI is a frequency mixer with low conversion loss. Applications include VSAT systems, instrumentation and cellular.
Parametrics
ADE-1ASK MINI absolute maximum ratings: (1)Operating Temperature: -40 to 85℃; (2)Storage Temperature: -55 to 100℃; (3)RF Power 50mW; (4)IF Current 40mA.
Features
ADE-1ASK MINI features: (1)low conversion loss, 5.3 dB typ.; (2)excellent L-R isolation, 50 dB typ.; (3)low profile package; (4)aqueous washable; (5)protected by U.S. Patent 6,133,525.

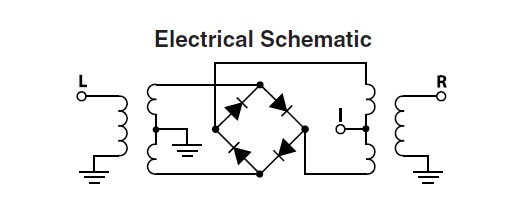

Diagrams
