Product Summary
The AD7501JN is a monolithic CMOS, 8-channel analog multiplexer which switch one of eight inputs to a common output, depending on the state of three binary address lines and an “enable” input. All digital inputs are TTL/DTL and CMOS logic compatible.
Parametrics
AD7501JN absolute maximum ratings: (1)VDD to GND: +17 V; (2)VSS to GND:–17 V; (3)V Between Any Switch Terminals1: 25 V; (4)Digital Input Voltage Range: VDD to GND; (5)Overvoltage at VOUT (VS): VSS, VDD; (6)Switch Current (IS, Continuous One Channel): 35 mA; (7)Switch Current (IS, Surge One Channel)1 ms Duration, 10% Duty Cycle: 50 mA; (8)Power Dissipation (Any Package): Up to +75℃:450 mW; Derates above +75℃ by: 6 mW/℃; (9)Operating Temperature: Commercial (KN Version): 0℃ to +70℃; Industrial (KQ Version):–25°C to +85°C; Extended (SQ, SE Versions):-55℃to +125℃; (10)Storage Temperature:-65℃ to +150℃; (11)Lead Temperature (Soldering, 10 sec):+300℃
Features
AD7501JN features: (1)DTL/TTL/CMOS Direct Interface; (2)Power Dissipation: 30 μW; (3)RON: 170Ω; (4)Standard 16-Lead DlPs and 20-Terminal Surface; (5)Mount Packages.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

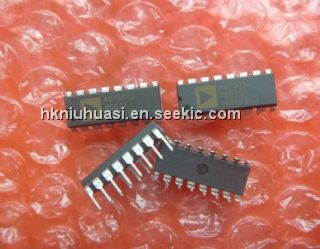

 AD7501JN |
|
IC MULTIPLEXER 8X1 16DIP |
Data Sheet |
|
|
||||||||||||||||
|
AD7501JNZ |
|
IC MULTIPLEXER 8X1 16DIP |
Data Sheet |
|
|
||||||||||||||||
