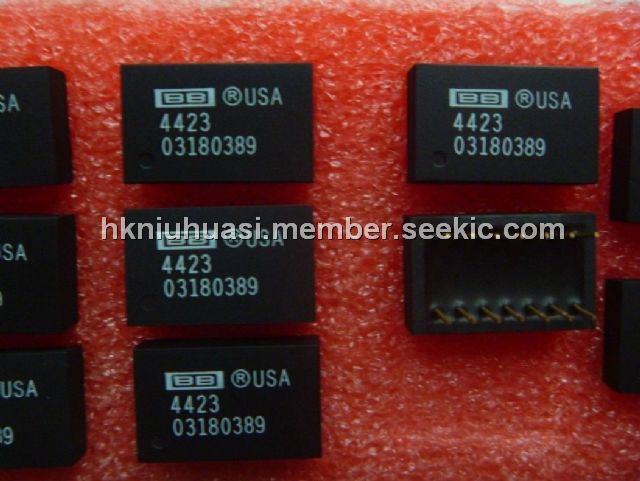

Product Summary

The 4423 is a precision quadrature oscillator. It has two outputs 90 dgrees out of phase with each other, thus providing sine and cosine wave outputs available at the same time. The 4423 is resistor programmable and is easy to use.

Parametrics

4423 absolute maximum ratngs: (1)input offset voltage: 1.5mV; (2)input bias current: 275mA; (3)open loop gain: 90dB; (4)output current: 5mA; (5)operation temperature range: -25 to 85℃; (6)storage temperature range: -55 to 125℃.

Features

4423 features: (1)sine and cosine outputs; (2)resistor programmable frequency; (3)wide frequency range: 0.002Hz to 20kHz; (4)low distoration: 0.2% max up to 5kHz; (5)easy adjustments; (6)small size; (7)low cost.

Diagrams

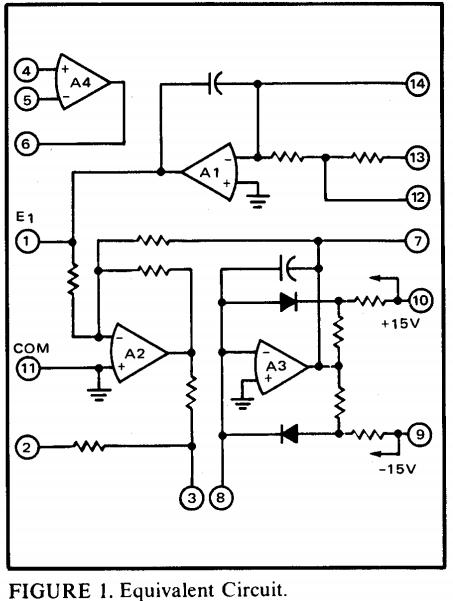

4423 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
4423
4423
Cooper Bussmann
Fuseholders, Clips, & Hardware 4423
Data Sheet
0-1: $7.21
1-25: $6.79
25-50: $6.29
50-100: $5.86
44230
44230

BLADE PRECISION NO.27
Data Sheet
0-12: $2.83
44231
44231

BLADE PRECISION NO.28
Data Sheet
0-12: $2.83

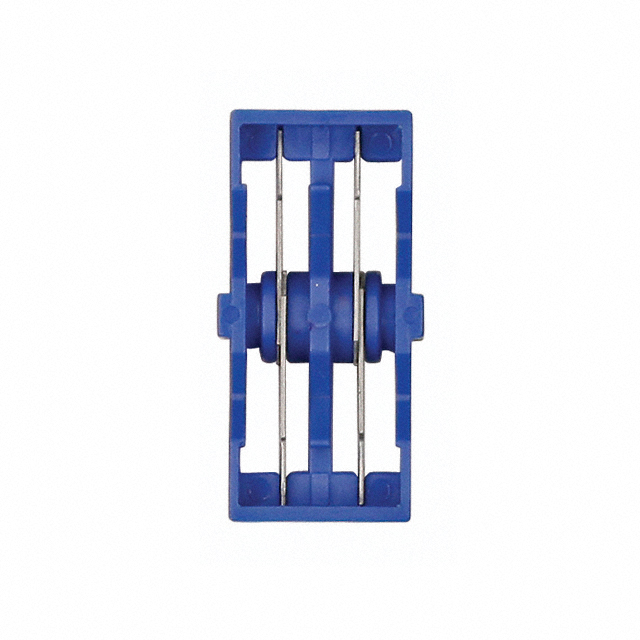

44237
44237

REPLACE STRIP CASSETTE BLU 2STEP
Data Sheet
0-1: $21.20

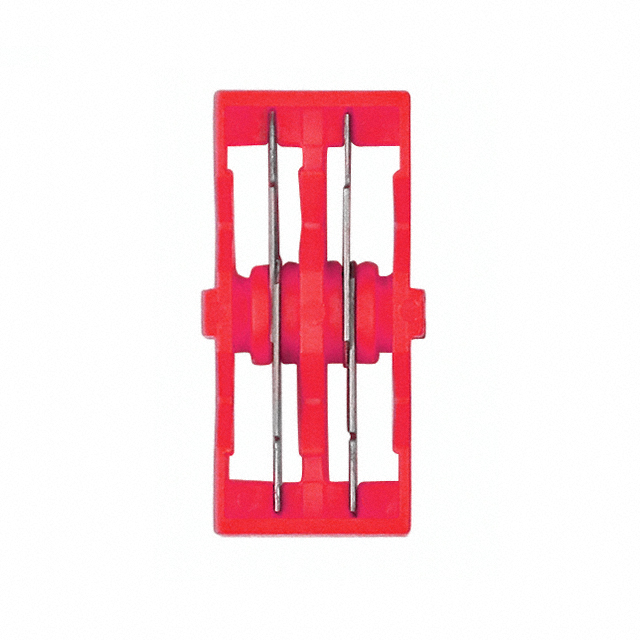

44238
44238

REPLACE STRIP CASSETTE RED 2STEP
Data Sheet
0-1: $21.20

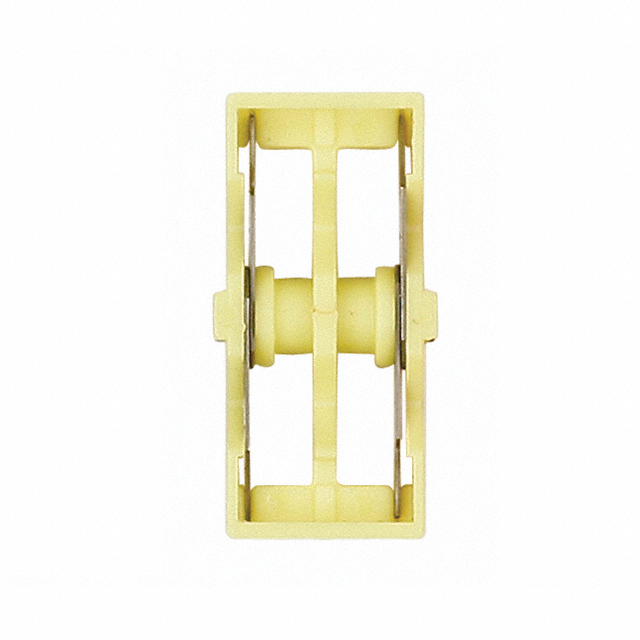

44239
44239

REPLACE STRIP CASSETTE YEL 2STEP
Data Sheet
0-1: $21.20
4423P
4423P

IC CLCK OSC 20KHZ 14-DIP
Data Sheet
Negotiable
