Product Summary

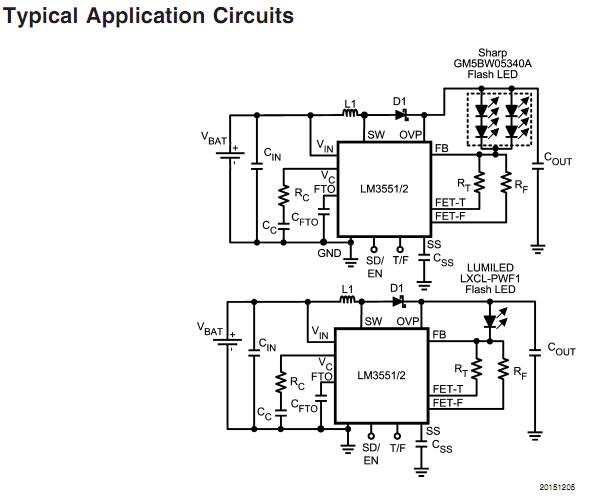

The 3551S is a fixed frequency, current mode step-up DC/DC converter with two integrated NFETs that can be used for precision LED brightness control. The devices are capable of driving loads up to 1A from a single-cell Li-Ion battery. The 3551S is suitable for (1)White LED Camera Flash; (2)White LED Torch (Flashlight); (3)DSC (Digital Still Camera) Flash; (4)Cellular Camera Phone Flash; (5)PDA Camera Flash; (6)Camcorder Torch (Flashlight) lamp.

Parametrics

3551S absolute maximum ratings: (1)VIN pin: Voltage to GND 7.5V; (2)SW pin: Voltage to GND 21V; (3)FB pin: Voltage to GND 7V; (4)VC pin: Voltage to GND 1.26V ± 0.3V; (5)SD,T/F pins: Voltage to GND 7.5V; (6)FET-T, FET-F: Voltage to GND 6V; (7)Junction Temperature (TJ-MAX )150℃; (8)Storage Temperature Range -65 to +150℃; (9)ESD Rating: 2.0kV.

Features

3551S features: (1)Up to 1A total drive current; (2)Flash timeout protection; (3)Independent Torch/Flash/Shutdown modes; (4)LED disconnect in shutdown; (5)Programmable soft-start limits inrush current; (6)Over-voltage protection; (7)Wide voltage range 2.7 to 5.5V; (8)1.25MHz constant switching frequency; (9)Small, low profile package, non-pullback LLP14 (4mm×4mm).

Diagrams

3551S block diagram
