Product Summary

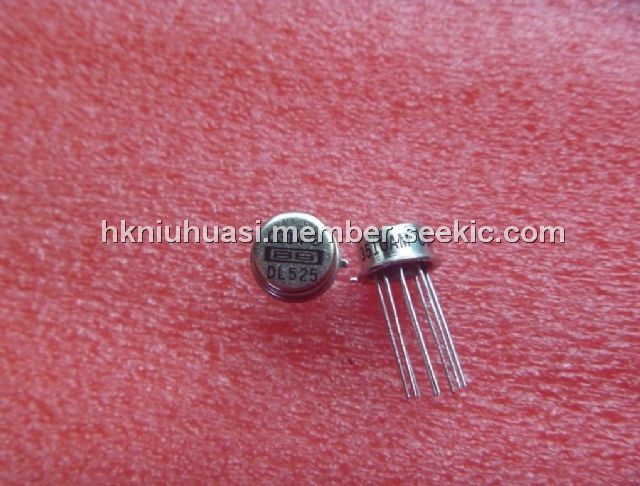

The 3510AM is a very-low drift precision operational amplifier. It is designed expressly for use in high gain analog circuits where very-low drift and high accuracy are essential requirements.

Parametrics

3510AM absolute maximum ratings: (1)open loop gain, dc: 120dB; (2)output resistance: 300Ω; (3)load capacitance: 1000pF; (4)specification: -25 to 85℃; (5)operating temperature: -55 to 125℃; (6)storage temperature: -65 to 150℃.

Features

3510AM features: (1)very-low drift: ±0.5μV/℃ max; (2)very-low offset: ±60μV max; (3)low bias current: ±15nA max; (4)high open-loop gain: 120dB min; (5)high CMR: 110dB min; (6)very-low thermal feedback: ±0.1μV/V.

Diagrams

3510AM block diagram
