Product Summary
The 1N5712 is a passivated Schottky barrier diode which use a patented “guard ring” design to achieve a high breakdown voltage. Packaged in a low cost glass package, they are well suited for high level detecting, mixing, switching, gating, log or A-D converting, video detecting, frequency discriminating, sampling, and wave shaping.
Parametrics
1N5712 absolute maximum ratings: (1)Junction Operating and Storage Temperature Range: -65℃ to +200℃; (2)DC Power Dissipation: 250 mW; (3)Peak Inverse Voltage: VBR.
Features
1N5712 features: (1)Low Turn-On Voltage As Low as 0.34 V at 1 mA; (2)Pico Second Switching Speed; (3)High Breakdown Voltage Up to 70 V; (4)Matched Characteristics Available.

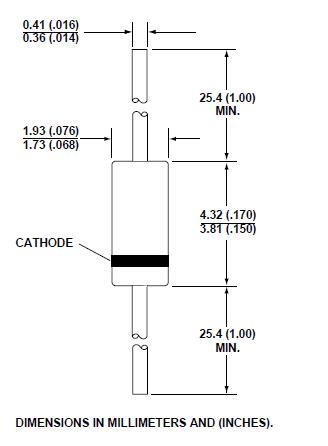

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
1N5712#T25 |
Avago Technologies |
Schottky (Diodes & Rectifiers) 20 VBR 1.2 pF |
Data Sheet |
Negotiable |
|
|||||
1N5712 |
Avago Technologies |
Schottky (Diodes & Rectifiers) 20 VBR 1.2 pF |
Data Sheet |
Negotiable |
|
