Product Summary

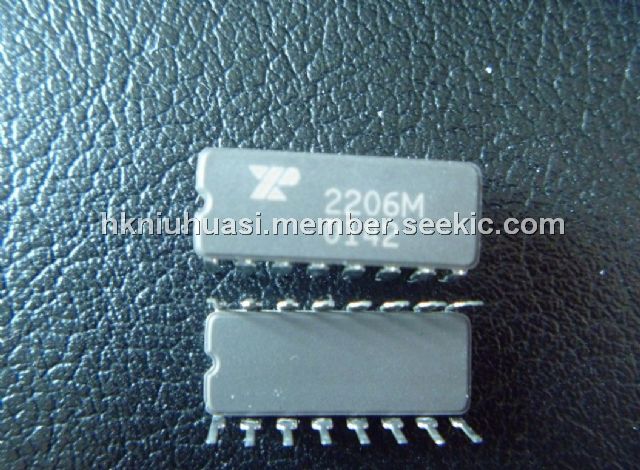

The XR2206M is a monolithic function generator integrated circuit capable of producing high quality sine, square, triangle, ramp, and pulse waveforms of high-stability and accuracy. The output waveforms of the XR2206M can be both amplitude and frequency modulated by an external voltage. Frequency of operation can be selected externally over a range of 0.01Hz to more than 1MHz. The applications of the XR2206M include Waveform Generation, Sweep Generation, AM/FM Generation, V/F Conversion, FSK Generation, Phase-Locked Loops (VCO).
Parametrics
XR2206M absolute maximum ratings: (1)Power Supply: 26V; (2)Power Dissipation: 750mW; (3)Derate Above 25℃: 5mW/℃; (4)Total Timing Current: 6mA; (5)Storage Temperature: -65℃ to +150℃.
Features
XR2206M features: (1)Low-Sine Wave Distortion, 0.5%, Typical; (2)Excellent Temperature Stability, 20ppm/℃, Typ.; (3)Wide Sweep Range, 2000:1, Typical; (4)Low-Supply Sensitivity, 0.01%V, Typ.; (5)Linear Amplitude Modulation; (6)TTL Compatible FSK Controls; (7)Wide Supply Range, 10V to 26V; (8)Adjustable Duty Cycle, 1% TO 99%.

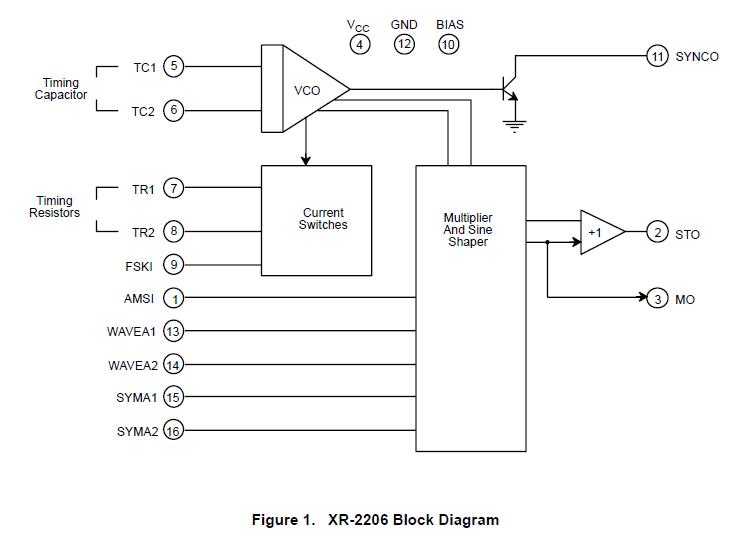

Diagrams
 |
 XR2206 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
 |
XR2206/11/12EB |
Exar |
Other Development Tools Supports 2206, 2211 & 2212 |
Data Sheet |
|
|
||||||
|
XR2206CP-F |
Exar |
Parity Functions 10V-26V 0.01Hz-1MHz temp 0C to 70C |
Data Sheet |
Negotiable |
|
||||||
|
XR2206D-F |
Exar |
Parity Functions 10V-26V 0.01Hz-1MHz temp 0C to 70C |
Data Sheet |
Negotiable |
|
||||||
|
XR2206DTR-F |
Exar |
Clock Generators & Support Products 10V-26V 0.01Hz-1MHz Temp 0C to 70C |
Data Sheet |
Negotiable |
|
||||||
|
XR2208CP |
Other |
|
Data Sheet |
Negotiable |
|
||||||
