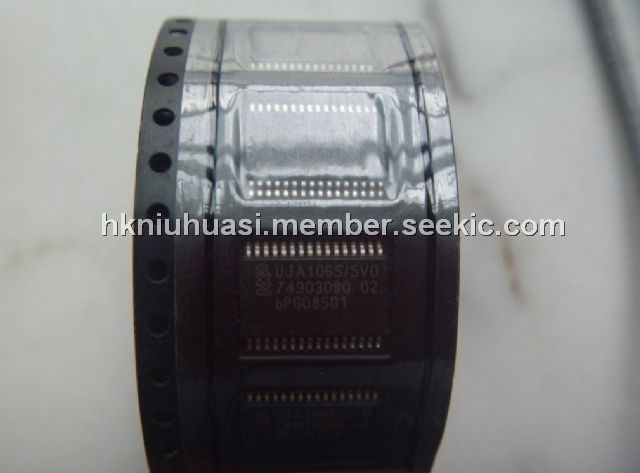

UJA1065TW/5V0

System Basis Chip, TSSOP, -0.3 to +60 V, UJA1065TW/5V0, NXP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.42~1.73 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.42~1.73

PartNumber:: UJA1065TW/5V0

Brand:: NXP Semiconductors - nxp | Pack: TSSOP | D/C: 02+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Becky's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-22

From Other Seller

Part Number:UJA1065TW/5V0
US $1.42 - 1.73
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
IRF3205

US $0.80 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

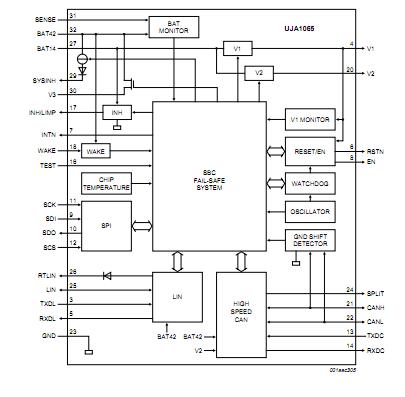

The UJA1065TW/5V0 is a System Basis Chip (SBC). It replaces basic discrete components which are common in every Electronic Control Unit (ECU) with a Controller Area Network (CAN) and a Local Interconnect Network (LIN) interface. The UJA1065TW/5V0 supports all networking applications which control various power and sensor peripherals by using high-speed CAN as the main network interface and LIN as a local sub-bus.

Parametrics

UJA1065TW/5V0 absolute maximum ratings: (1)VBAT42 BAT42 supply voltage: -0.3 to +60 V; (2)VBAT14 BAT14 supply voltage: -0.3 to +33 V; (3)VDC(n) DC voltages on pins: -0.3 to VV1 + 0.3 V; (4)Vtrt transient voltage: -150 to +100 V; (5)VRTLIN DC voltage at pin RTLIN: -60 to VBAT42 + 1.2 V; (6)VV1, VV2 DC voltage at pins V1 and V2: -0.3 to +5.5 V; (7)VSENSE DC voltage at pin SENSE: -0.3 to VBAT42 + 1.2 V; (8)VTEST DC voltage at pin TEST: -0.3 to +15 V; (9)Tstg storage temperature: -55 to +150℃; (10)Tamb ambient temperature: -40 to +125℃; (11)Tvj virtual junction temperature: -40 to +150℃.

Features

UJA1065TW/5V0 features: (1)CAN transceiver and LIN transceiver; (2)Voltage regulator for the microcontroller (3.0 V, 3.3 V or 5.0 V); (3)Separate voltage regulator for the CAN transceiver (5 V); (4)Enhanced window watchdog with on-chip oscillator; (5)Serial Peripheral Interface (SPI) for the microcontroller; (6)ECU power management system; (7)Fully integrated autonomous fail-safe system.
