Product Summary
The UCN5895A is a bimos ii 8-bit serial input, latched source driver. The UCN5895A BiMOS II serialinput, latched source drivers are designed for applications emphasizing low output saturation voltages and currents to -250 mA per output. The smart high-side octal, driver IC merge an 8-bit CMOS shift register UCN5895A, associated CMOS latches, and CMOS control logic (strobe and output enable) with medium current emitter-follower (sourcing) outputs. Typical applications of the UCN5895A include incandescent or LED displays (both directly driven and multiplexed), non-impact (i.e., thermal) printers, relays, and solenoids.
Parametrics
UCN5895A absolute maximum ratings: (1)Output Voltage, VOUT: 50 V; (2)Logic Supply Voltage Range, VDD: 4.5 V to 12 V; (3)Driver Supply Voltage Range, VBB: 5.0 V to 50 V; (4)Input Voltage Range, VIN: -0.3 V to VDD + 0.3 V; (5)Continuous Output Current, IOUT: -250 mA; (6)Operating Temperature Range, TA: -20℃ to +85℃; (7)Storage Temperature Range, TS: -55℃ to +150℃.
Features
UCN5895A features: (1)Low Output-Saturation Voltage; (2)Source Outputs to 50 V; (3)Output Current to -250 mA; (4)To 3.3 MHz Data-lnput Rate; (5)Low-Power CMOS Logic & Latches.

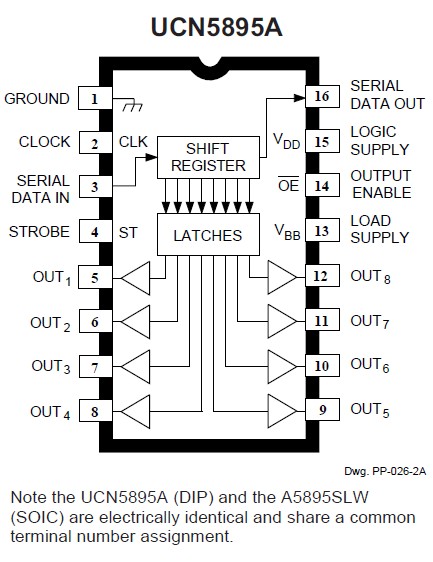

Diagrams
 |
