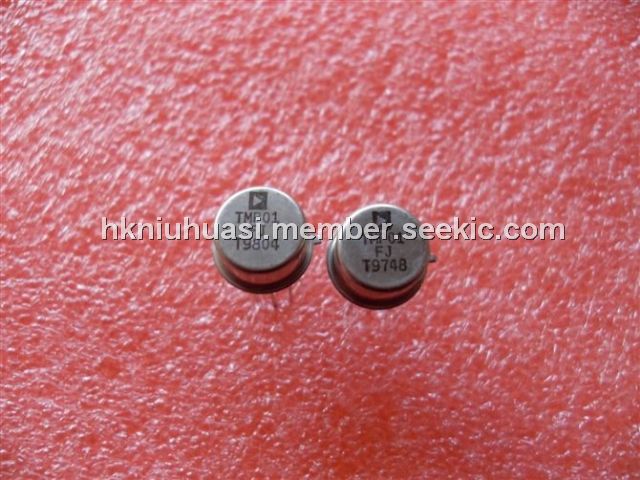

TMP01FJ

temperature sensor, TO99-8, 4.5 V to 13.2 V, 20 mA, Analog Devices

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.50~3.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.50~3.40

PartNumber:: TMP01FJ

Brand:: Analog Devices - ADI | Pack: CAN | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Becky's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-27

From Other Seller

Part Number:TMP01FJ
US $2.50 - 3.40
STK795-820

US $20.00 - 25.00 / Piece
(0) Remove
PCM63P-K

US $18.00 - 25.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

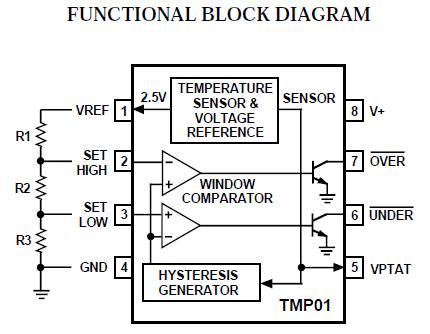

The TMP01FJ is a temperature sensor that generates a voltage output proportional to absolute temperature and a control signal from one of two outputs when the device is either above or below a specific temperature range. Both the high/low temperature trip points and hysteresis (overshoot) band are determined by user-selected external resistors. For high volume production, these resistors are available on board. The TMP01FJ consists of a band gap voltage reference combined with a pair of matched comparators. The reference of the TMP01FJ provides both a constant 2.5 V output and a voltage proportional to absolute temperature (VPTAT) which has a precise temperature coefficient of 5 mV/K and is 1.49 V (nominal) at 25℃. The comparators compare VPTAT with the externally set tempera-ture trip points and generate an open-collector output signal when one of their respective thresholds has been exceeded.

Parametrics

TMP01FJ absolute maximum ratings: (1)Maximum Supply Voltage: –0.3 V to +15 V; (2)Maximum Input Voltage(SETHIGH, SETLOW): –0.3 V to V+ +0.3 V; (3)Maximum Output Current (VREF, VPTAT): 2 mA; (4)Maximum Output Current (Open Collector Outputs): 50 mA; (5)Maximum Output Voltage (Open Collector Outputs): 15 V; (6)Operating Temperature Range: –55℃ to +150℃; (7)Dice Junction Temperature: +150℃; (8)Storage Temperature Range: – 65℃ to +150℃; (9)Lead Temperature (Soldering, 60 sec): +300℃.

Features

TMP01FJ features: (1)–55℃ to +125℃ Operation; (2)±10℃ Accuracy Over Temperature (typ); (3)Temperature-Proportional Voltage Output; (4)User Programmable Temperature Trip Points; (5)User Programmable Hysteresis; (6)20 mA Open Collector Trip Point Outputs; (7)TTL/CMOS Compatible; (8)Single-Supply Operation (4.5 V to 13.2 V); (9)PDIP, SOIC, and TO-99 packages.
