THAT2155

SIP/ZIP, IC voltage-controlled amplifier, 6 MHz, Wide Dynamic Range, 116 dB

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.36~3.52 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.36~3.52

PartNumber:: THAT2155

Brand:: THAT Corporation - THAT Corporation | Pack: SIP | D/C: 03+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Becky's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-27

From Other Seller

Part Number:THAT2155
US $2.36 - 3.52
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

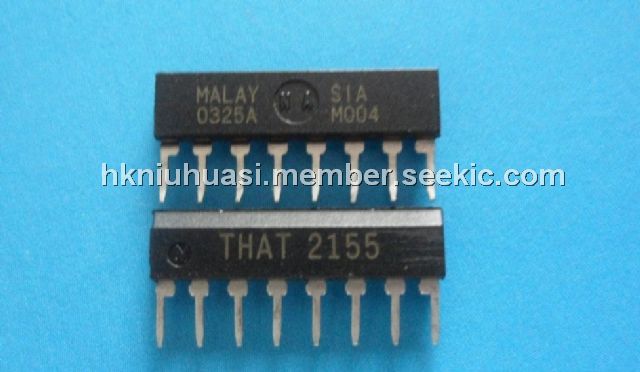

The THAT2155 is an IC voltage-controlled amplifier. The THAT2155 integrated-circuit voltagecontrolled amplifier (VCA) is high-performance current-in/current-out devices with two opposingpolarity, voltage-sensitive control ports. Based on dbx technology, the THAT2155 offers wide-range exponential control of gain and attenuation with low signal distortion. The parts of the THAT2155 are housed in a space-efficient, plastic 8-pin single-in-line (SIP) package, and require minimal support circuitry. Fabricated in a super low-noise process utilizing high hFE, complementary NPN/PNP pairs, the THAT2155 VCA combine high gain-bandwidth product with low noise, low distortion, and low offset to offer discrete performance at IC prices. The THAT2155 is available in three grades, selected for distortion, allowing the user to optimize cost vs. performance.

Parametrics

THAT2155 absolute maximum ratings: (1)Positive Supply Voltage (VCC): +18 V; (2)Negative Supply Voltage (VEE): -18 V; (3)Supply Current (ICC): 10 mA; (4)Power Dissipation (PD) (TA = 75℃): 330 mW; (5)Operating Temperature Range (TOP): -20 to +75℃; (6)Storage Temperature Range (TST): -40 to +125℃.

Features

THAT2155 features: (1)Wide Dynamic Range: >116 dB; (2)Wide Gain Range: >130 dB; (3)Exponential (dB) Gain Control; (4)Low Distortion: (0.008% @ 0 dB; (5)gain, 0.035% @15dB gain); (6)Wide Gain-Bandwidth: 6 MHz; (7)Low Cost: $2.20 in 00s (2155); (8)Single In-Line Package; (9)Dual Gain-Control Ports (pos/neg).
