Product Summary
The SSST39VF400A-70-4C-EKE is a 128K x16 / 256K x16 / 512K x16 CMOS Multi-Purpose Flash (MPF) manufactured with SSTs proprietary, high performance CMOS SuperFlash technology. The split-gate cell design and thick oxide tunneling injector attain better reliability and manufacturability compared with alternate approaches. The SST39VF400A-70-4C-EKE write (Program or Erase) with a 2.7-3.6V power supply. The SST39VF400A-70-4C-EKE conforms to JEDEC standard pinouts for x16 memories.
Parametrics
SST39VF400A-70-4C-EKE absolute maximum ratings: (1)Temperature Under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)D. C. Voltage on Any Pin to Ground Potential: -0.5V to VDD + 0.5V; (4)Transient Voltage (<20 ns) on Any Pin to Ground Potential: -1.0V to VDD + 1.0V; (5)Voltage on A9 Pin to Ground Potential: -0.5V to 13.2V; (6)Package Power Dissipation Capability (Ta = 25℃): 1.0W; (7)Surface Mount Lead Soldering Temperature (3 Seconds): 240℃; (8)Output Short Circuit Current: 50 mA.
Features
SST39VF400A-70-4C-EKE features: (1)Superior Reliability. Endurance: 100,000 Cycles (typical). Greater than 100 years Data Retention; (2)Low Power Consumption; (3)Active Current: 20 mA (typical); (4)Standby Current: 3μA (typical); (5)Sector-Erase Capability; (6)Uniform 2 KWord sectors; (7)Block-Erase Capability; (8)Uniform 32 KWord blocks; (9)Fast Read Access Time.

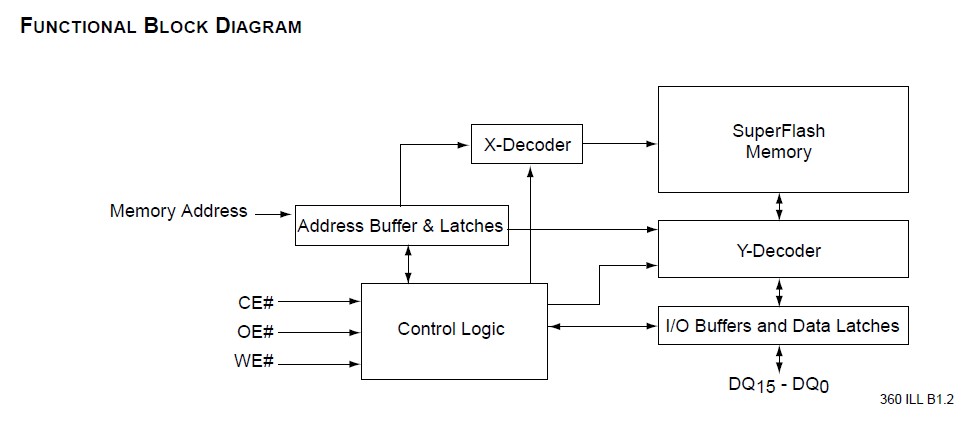

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SST39VF400A-70-4C-EKE |
Microchip Technology |
Flash 256K X 16 70ns |
Data Sheet |
|
|
||||||||||||
|
SST39VF400A-70-4C-EKE-T |
Microchip Technology |
Flash 2.7V to 3.6V 4Mb Multi-Purpose Flash |
Data Sheet |
|
|
||||||||||||
