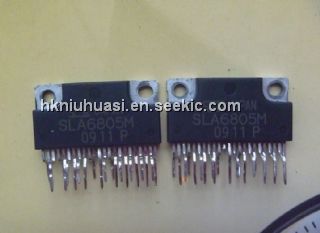

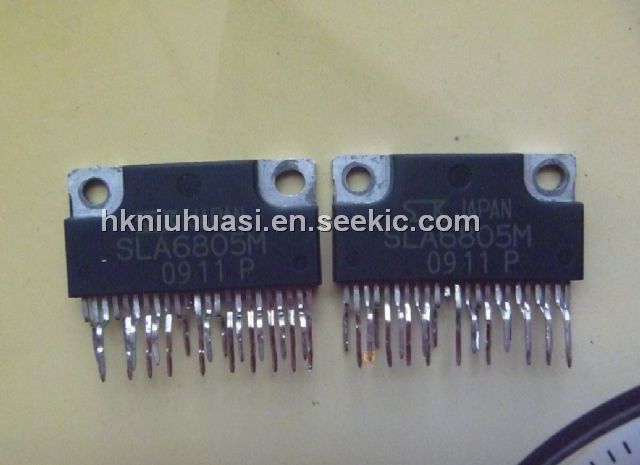

SLA6805MP

3-Phase Motor Driver, High Voltage, 3 A, 32 W, SIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $5.62~7.15 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	7.15 / Piece
50 ~ 500 :	6.00 / Piece
1000 ~ 2000 :	5.62 / Piece

PartNumber:: SLA6805MP

Brand:: Sanken electric - Sanken | Pack: SIP | D/C: 09+

Availability:: Supply Ability: 1/Year Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Becky's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-05

From Other Seller

Part Number:SLA6805MP
US $5.62 - 7.15
Quantity:

piece

Product Summary

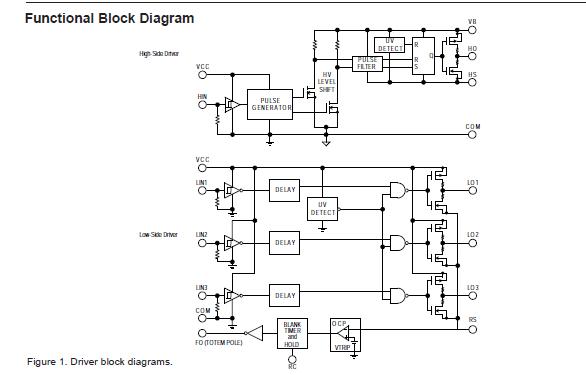

The SLA6805MP inverter power module (IPM) device provides a robust, highly-integrated solution for optimally controlling 3-phase motor power inverter systems and variable speed control systems used in energy-conserving designs to drive motors of residential and commercial appliances. These ICs take 230 VAC input voltage, and 3 A (continuous) output current. They can withstand voltages of up to 600 V (IGBT breakdown voltage). The SMA6800MP power package includes an IC with all of the necessary power elements (six IGBTs), pre-driver ICs (two), and flyback diodes (six), needed to configure the main circuit of an inverter. This enables the main circuit of the inverter to be configured with fewer external components than traditional designs. Applications include residential white goods (home applications) and commercial appliance motor control.

Parametrics

SLA6805MP absolute maximum ratings: (1)IGBT Breakdown Voltage: 600 V; (2)Logic Supply Voltag: 20 V; (3)Bootstrap Voltage: 20 V; (4)Output Current, Continuous: 3 A; (5)Output Current, Pulsed: 6 A; (6)Input Voltage:–0.5 to 7 V; (7)RC Pin Input Voltage: 20 V; (8)Allowable power dissipation: 32 W; (9)Thermal resistance (Junction to Case): 3.8℃/W; (10)All elements operating: 5.4℃; (11)Case Operating Temperature:–20 to 100℃; (12)Junction Temperature (MOSFET): 150℃; (13)Storage Temperature:–40 to 150℃.

Features

SLA6805MP features: (1)Built-in pre-drive IC; (2)IGBT power element; (3)CMOS compatible input (5 V); (4)High-side gate driver using bootstrap circuit or floating power supply; (5)Built-in protection circuit for controlling power supply voltage drop; (6)Overcurrent protection circuit (OCP); (7)Output of fault signal during operation of protection circuit; (8)Output current 3 A; (9)Small SIP (SLA 23-pin).
