Product Summary

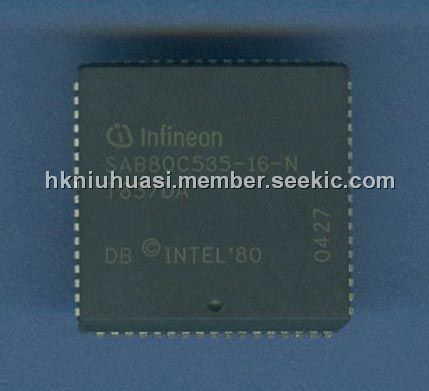

The SAB80C535-16-NT85/DA is a powerful member of the Siemens SAB 8051 family of 8-bit microcontroller. It is designed in Siemens ACMOS technology and is functionally compatible with the SAB 80515/80535 devices designed in MYMOS technology. The SAB80C535-16-NT85/DA is a stand-alone, high-performance single-chip microcontroller based on the SAB 8051/80C51 architecture. While maintaining all the SAB 80C51 operating characteristics, the SAB80C535-16-NT85/DA incorporates several enhancements which significantly increase design flexibility and overall system performance.
Parametrics
SAB80C535-16-NT85/DA absolute maximum ratings: (1)Ambient temperature under bias: -40 to 85 ℃; (2)Storage temperature: -65 to 150 ℃; (3)Voltage on VCC pins with respect to ground (VSS): -0.5 to 6.5 V; (4)Voltage on any pin with respect to ground (VSS): -0.5 to VCC + 0.5 V; (5)Input current on any pin during overload condition: -10 mA to + 10 mA; (6)Absolute sum of all input currents during overload condition: 100 mA; (7)Power disipation: 2 W.
Features
SAB80C535-16-NT85/DA features: (1)Six 8-bit I/O ports, one input port for digital or analog input; (2)4 ms (3 ms) multiply and divide; (3)External memory expandable up to 128 Kbytes; (4)Three 16-bit timer/counters; (5)Highly flexible reload, capture, compare capabilities; (6)Backwardly compatible with SAB 8051; (7)Functionally compatible with SAB 80515; (8)Full-duplex serial channel; (9)Idle and power-down mode.

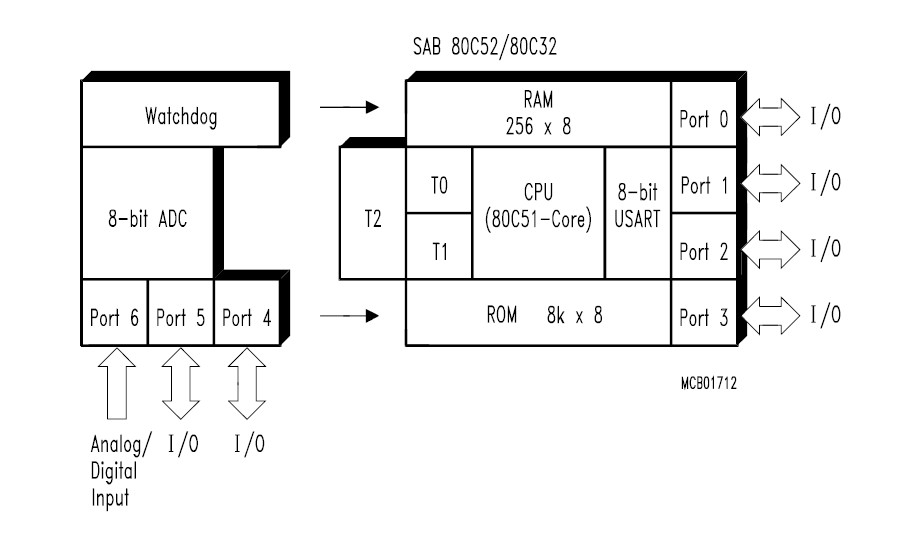

Diagrams
 |
