Product Summary
The PSD312-B-70J is a low cost field programmable microcontroller.
Parametrics
PSD312-B-70J absolute maximum ratings: (1)TSTG, storage temperature, CERDIP: +150℃; PLASTIC: +125℃; (2)Voltage on any pin: +7V; (3)VPP, programming supply voltage: +14V; (4)VCC, supply voltage: +7V.
Features
PSD312-B-70J features: (1)Single supply voltage; (2)Up to 1Mbit of EPROM; (3)Up to 16Kbit SRAM; (4)Input latches; (5)Programmable I/O ports; (6)Page logic; (7)Programmable security.

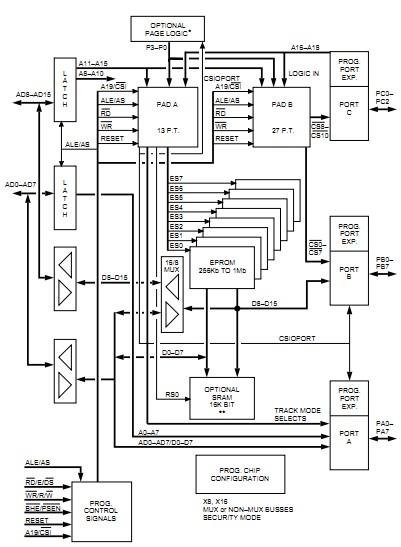

Diagrams
 |
