Product Summary
The PKJ4316PILA is a direct converter.
Parametrics
PKJ4316PILA absolute maximum ratings: (1)Tref, Operating Temperature (see Thermal Consideration section): -40 to +100 ℃; (2)TS, Storage temperature: -55 to +125 ℃; (3)VI, Input voltage: -0.5 to +80 V; (4)Viso, Isolation voltage (input to output test voltage): 1500 Vdc max; (5)Vtr, Input voltage transient (Tp 100 ms): 100 V max; (6)VRC, Remote Control pin voltage(see Operating Information section): Positive logic option: -0.5 to 2- V; Negative logic option: 20 V max; (7)Vadj, Adjust pin voltage (see Operating Information section): -0.5 to 28V.
Features
PKJ4316PILA features: (1)Industry standard Half-brick 61.00 x 57.90 x 12.70 mm (2.40 x 2.28 x 0.50 in.); (2)High efficiency, typ. 91.5 % at 30.2Vout half load; (3)1500 Vdc input to output isolation; (4)Meets isolation requirements equivalent to basic insulation according to IEC/EN/UL 60950; (5)3 million hours predicted MTBF.

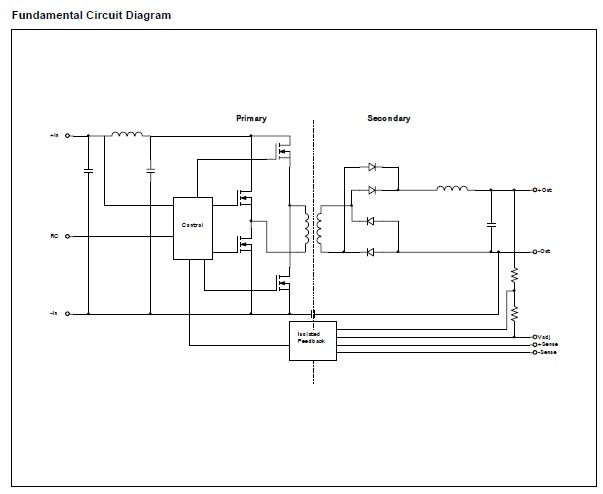

Diagrams
 |
