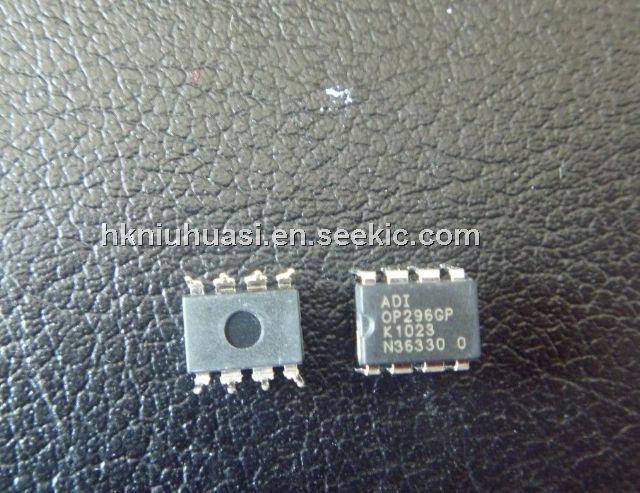

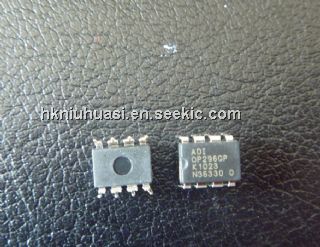

Product Summary

The OP296GP is an operational amplifier which features micropower operation and rail-to-rail input and output ranges. The extremely low power requirements and guaranteed operation from +3 V to +12 V make OP296GP operational amplifier perfectly suited to monitor battery usage and to control battery charging. Its dynamic performance recommends OP296GP for battery-powered audio applications. Applications include Battery Monitoring, Sensor Conditioners, Portable Power Supply Control and Portable Instrumentation.

Parametrics

OP296GP absolute maximum ratings: (1)Supply Voltage: +15 V; (2)Input Voltage: +15 V; (3)Differential Input Voltage:+15 V; (4)Output Short Circuit Duration: Indefinite; (5)Storage Temperature Range(P, S, RU Package): –65℃ to +150℃; (6)Operating Temperature Range: –40℃to +125℃; (7)Junction Temperature Range(P, S, RU Package):–65℃ to +150℃; (8)Lead Temperature Range (Soldering, 60 sec): +300℃.

Features

OP296GP features: (1)Rail-to-Rail Input and Output Swing; (2)Low Power: 60 mA/Amplifier; (3)Gain Bandwidth Product: 450 kHz; (4)Single-Supply Operation: +3 V to +12 V; (5)Low Offset Voltage: 300 mV max; (6)High Open-Loop Gain: 500 V/mV; (7)Unity-Gain Stable; (8)No Phase Reversal.

Diagrams

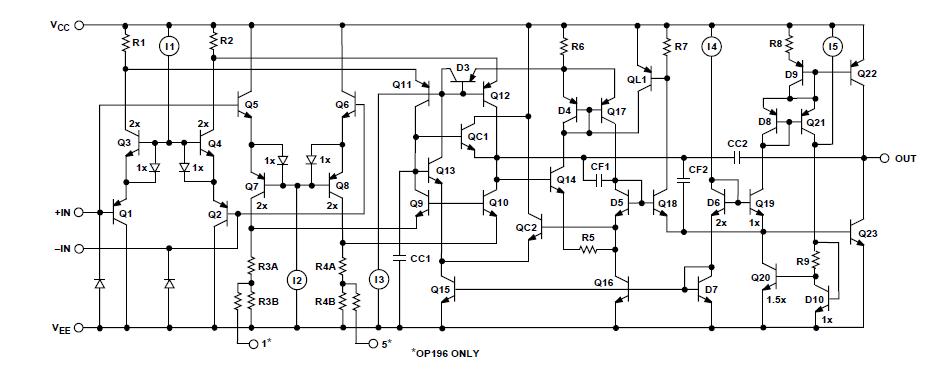

OP296GP Simplified Schematic
