Product Summary
The OP07CJ offers low offset and long-term stability by means of a low-noise, chopperless, bipolar-input-transistor amplifier circuit. For most applications, external components of the OP07CJ are not required for offset nulling and frequency compensation. The true differential input, with a wide input-voltage range and outstanding common-mode rejection, provides maximum flexibility and performance in high-noise environments and in noninverting applications. Low bias current and extremely high input impedance are maintained over the entire temperature range. The OP07CJ is unsurpassed for low-noise, high-accuracy amplification of very-low-level signals. The OP07CJ is characterized for operation from 0℃ to 70℃.
Parametrics
OP07CJ absolute maximum ratings: (1)Supply voltage: VCC+: 22 V; VCC: 22 V; (2)Differential input voltage: ±30 V; (3)Input voltage, VI: ±22 V; (4)Duration of output short circuit (see Note 4): Unlimited; (5)Package thermal impedance, θJA: D package: 97℃/W; (6)Operating virtual junction temperature, TJ: 150℃; (7)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃; (8)Storage temperature range, Tstg: 65℃ to 150℃.
Features
OP07CJ features: (1)Low Noise; (2)No External Components Required; (3)Replace Chopper Amplifiers at a Lower Cost; (4)Wide Input-Voltage Range: 0 to ±14 V Typ; (5)Wide Supply-Voltage Range: ±3 V to ±18 V.

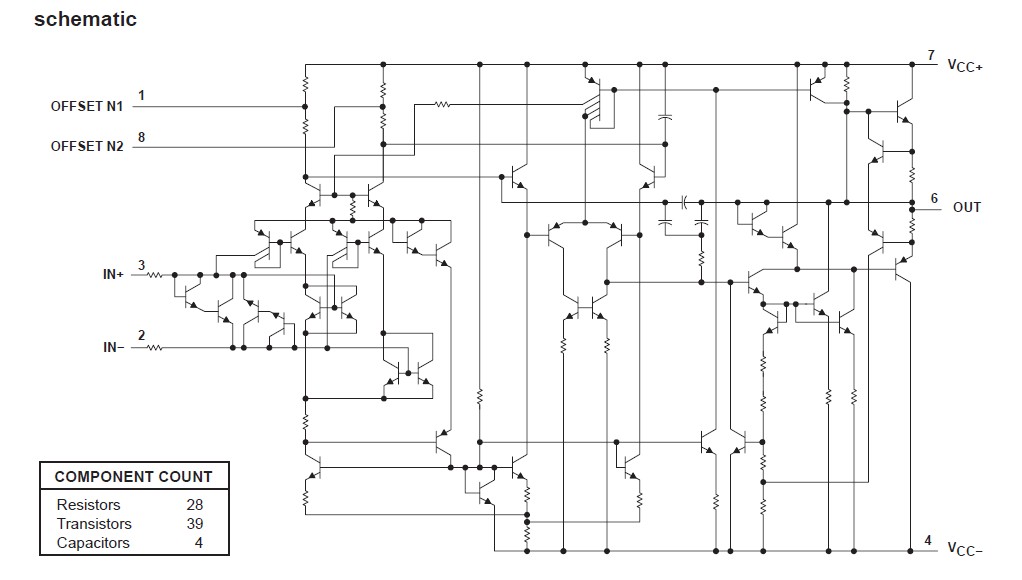

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 OP07CJ8 |
Linear Technology |
IC OPAMP PREC 8-CDIP |
Data Sheet |
Negotiable |
|
||||
