Product Summary

The LMH0002MA is a SMPTE 292M / 259M serial digital cable driver. The LMH0002MA digital cable driver is a monolithic, high-speed cable driver designed for use in SMPTE 292M / 259M serial digital video and ITU-T G.703 serial digital data transmission applications. The LMH0002MA drives 75Ω transmission lines (Belden 8281, Belden 1694A or equivalent) at data rates up to 1.485 Gbps. The LMH0002MA provides two selectable slew rates for SMPTE 259M and SMPTE 292M compliance. The output voltage swing of the LMH0002MA is adjustable via a single external resistor.

Parametrics

LMH0002MA absolute maximum ratings: (1)Supply Voltage: -0.5V to 3.6V; (2)Input Voltage (all inputs): -0.3V to VCC+0.3V; (3)Output Current: 28mA; (4)Storage Temperature Range: -65℃ to +150℃; (5)Junction Temperature: +150℃; (6)Lead Temperature (Soldering 4 Sec): +260℃.

Features

LMH0002MA features: (1)SMPTE 292M, SMPTE 344M and SMPTE 259M compliant; (2)Data rates to 1.485 Gbps; (3)Differential input; (4)75Ω differential output; (5)Selectable slew rate; (6)Adjustable output amplitude; (7)Single 3.3V supply operation; (8)Operating temperature range: Commercial 0 to +70℃; (9)Typical power consumption: 125mW iSD mode and 149mW iHD mode; (10)8–piSOIC or 16–piLLP package.

Diagrams

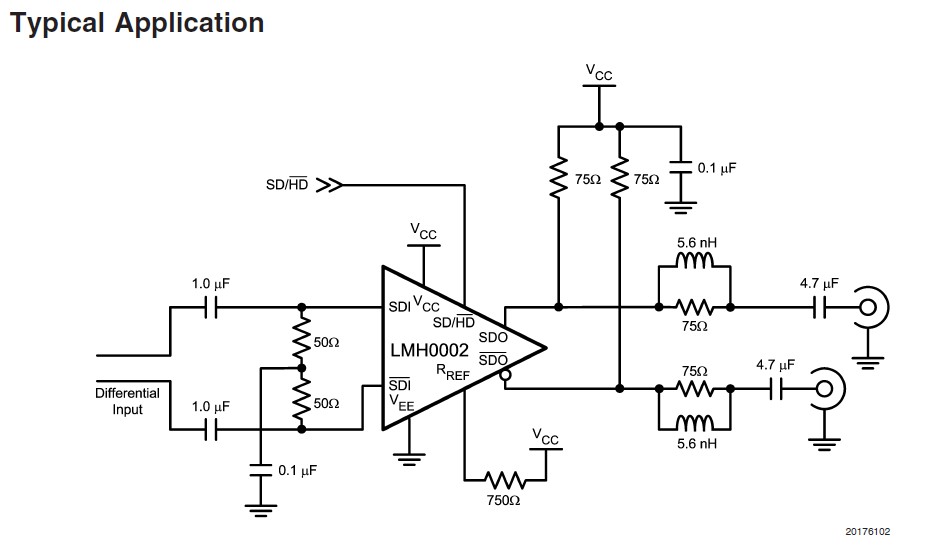

LMH0002MA Typical Application

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

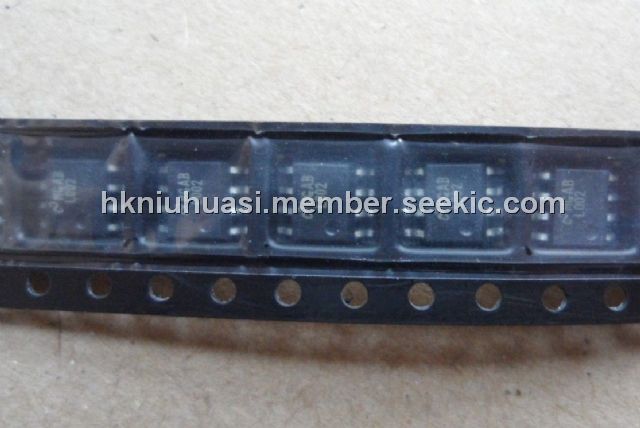

LMH0002MA
LMH0002MA
National Semiconductor (TI)
Interface - Specialized
Data Sheet
0-95: $4.70
95-190: $4.27
190-285: $3.84
285-570: $3.52
LMH0002MA/NOPB
LMH0002MA/NOPB
National Semiconductor (TI)
Interface - Specialized Sdi Cable Driver
Data Sheet
0-1: $5.34
1-25: $4.37
25-100: $3.95
100-250: $3.63
LMH0002MAX/NOPB
LMH0002MAX/NOPB
National Semiconductor (TI)
Interface - Specialized
Data Sheet
0-1855: $2.88
1855-2500: $2.77
LMH0002MAX
LMH0002MAX
National Semiconductor (TI)
Interface - Specialized
Data Sheet
0-2500: $2.77
