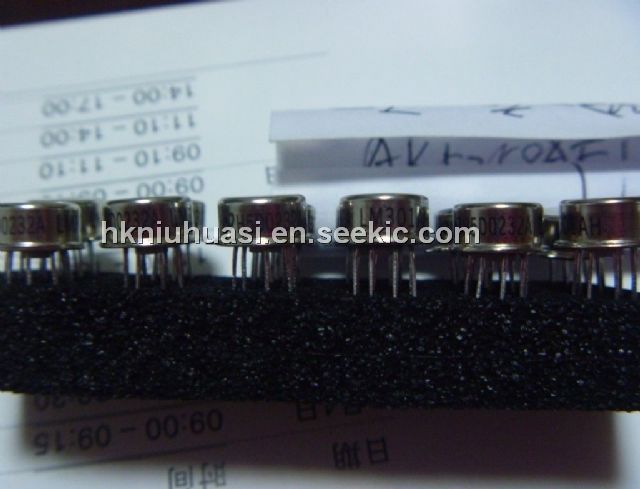

Product Summary

The LM301AH is an operational amplifier which features improved performance. Advanced processing techniques make possible an order of magnitude reduction in input currents, and a redesign of the biasing circuitry reduces the temperature drift of input current. This amplifier offers many features which make its application nearly foolproof: overload protection on the input and output, no latch-up when the common mode range is exceeded, and freedom from oscillations and compensation with a single 30 pF capacitor. It has advantages over internally compensated amplifiers in that the frequency compensation can be tailored to the particular application. For example, in low frequency circuits it can be overcompensated for increased stability margin. Or the compensation can be optimized to give more than a factor often improvement in high frequency performance for most applications.

Parametrics

LM301AH absolute maximum ratings: (1)Supply Voltage: ±18V; (2)Differential Input Voltage: ±30V; (3)Input Voltage (Note 3): ±15V; (4)Output Short Circuit Duration (Note 4): Continuous; (5)Operating Ambient Temp. Range:0 to +70℃; (6)Storage Temperature Range: -65℃to +150℃; (7)Lead Temperature (Soldering, 10 sec.): Metal Can or Ceramic 300℃; Plastic 260℃; (8)ESD Tolerance (Note 7): 2000V.

Diagrams

LM301AH Connection Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LM301AH
LM301AH

National Semiconductor (TI)

Operational Amplifiers - Op Amps

Data Sheet

0-500: $3.52
500-1000: $3.45
LM301AH/NOPB
LM301AH/NOPB

National Semiconductor (TI)

Operational Amplifiers - Op Amps Operational Amp

Data Sheet

0-1: $5.01
1-25: $4.10
25-100: $3.70
100-250: $3.40
