Product Summary
The LH0021K/883 is a general purpose operational amplifier capable of delivering large output currents not usually associated with conventional IC Op Amps. The LH0021K/883 will provide output currents in excess of one ampere at voltage levels of ±12V. In addition, both the inputs and outputs are protected against overload. The LH0021K/883 is compensated with a single external capacitor and are free of any unusual oscillation or latch-up problems.
Parametrics
LH0021K/883 absolute maximum ratings: (1)Supply Voltage: ±18V; (2)Differential Input Voltage: ±30V; (3)Input Voltage: ±15V; (4)Peak Output Current: 2.0 Amps; (5)Output Short Circuit Duration: Continuous; (6)Operating Temperature Range: -55 to 125℃; (7)Storage Temperature Range: -65 to 150℃; (8)Lead Temperature (Soldering, 10 sec.): 300℃.
Features
LH0021K/883 features: (1)Output current: 1.0 Amp; (2)Output voltage swing: ±12V into 10X; (3)Wide full power bandwidth 15 kHz; (4)Low standby power 100 mW at ±15V; (5)Low input offset voltage and current 1 mV and 20 nA; (6)High slew rate 3.0V/ms; (7)High open loop gain 100 dB.

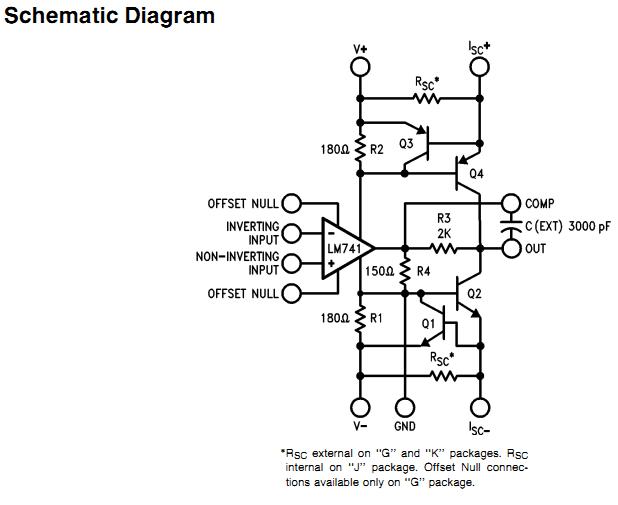

Diagrams
 |
