Product Summary

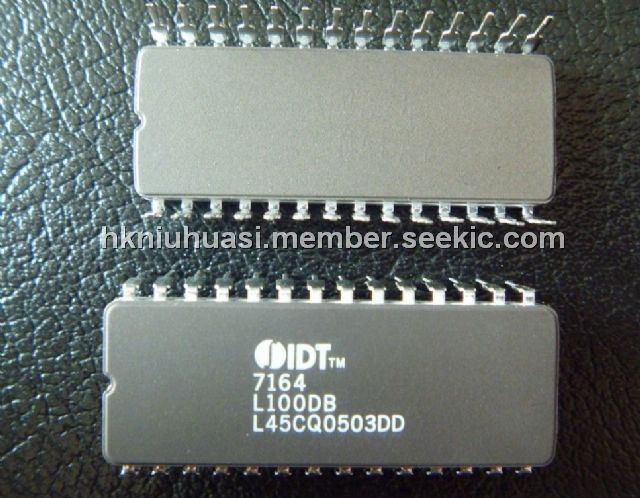

The IDT7164L100DB is a 65,536 bit high-speed static RAM organized as 8K× 8. The IDT7164L100DB is fabricated using IDT’s high-performance, high-reliability CMOS technology. Address access times as fast as 15ns are available and the circuit offers a reduced power standby mode. When CS1 goes HIGH or CS2 goes LOW, the circuit will automatically go to, and remain in, a low-power stand by mode. The low-power (L) version also offers a battery backup data retention capability at power supply levels as low as 2V.

Parametrics

IDT7164L100DB absolute maximum ratings: (1)VTERM, Terminal Voltage with Respect to GND: -0.5 to +7.0V; (2)TA Operating Temperature: 0 to +70℃; (3)TBIAS Temperature Under Bias: -55 to +125℃; (4)TSTG Storage Temperature: -55 to +125℃; (5)PT Power Dissipation: 1.0 W; (6)IOUT DC Output Current: 50 mA.

Features

IDT7164L100DB features: (1)High-speed address/chip select access time; (2)Low power consumption; (3)Battery backup operation – 2V data retention voltage (L Version only); (4)Produced with advanced CMOS high-performance technology; (5)Inputs and outputs directly TTL-compatible; (6)Three-state outputs; (7)Available in 28-pin DIP, CERDIP and SOJ; (8)Military product compliant to MIL-STD-883, Class B.

Diagrams

IDT7164L100DB block diagram
