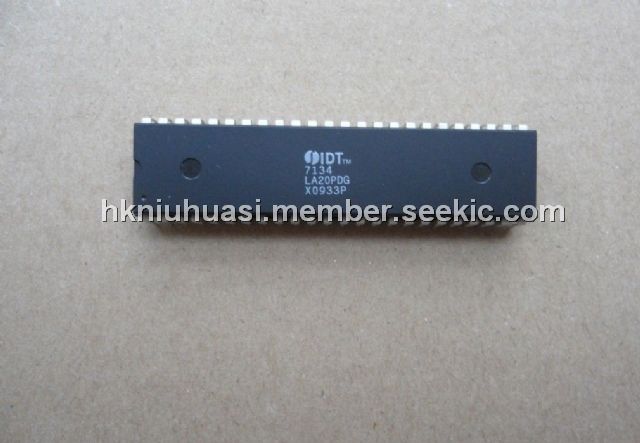

IDT7134LA20PDG

DIP48, high-speed, 4K x 8, Dual-Port Static RAM, 500mW, 1mW, Battery backup operation, TTL-compatible

Rated 5 Rating 5 | reviews | Write a review

Price:: US $5.20~6.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $5.20~6.80

PartNumber:: IDT7134LA20PDG

Brand:: Integrated Device Technology - IDT | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Becky's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-28

From Other Seller

Part Number:IDT7134LA20PDG
US $5.20 - 6.80
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

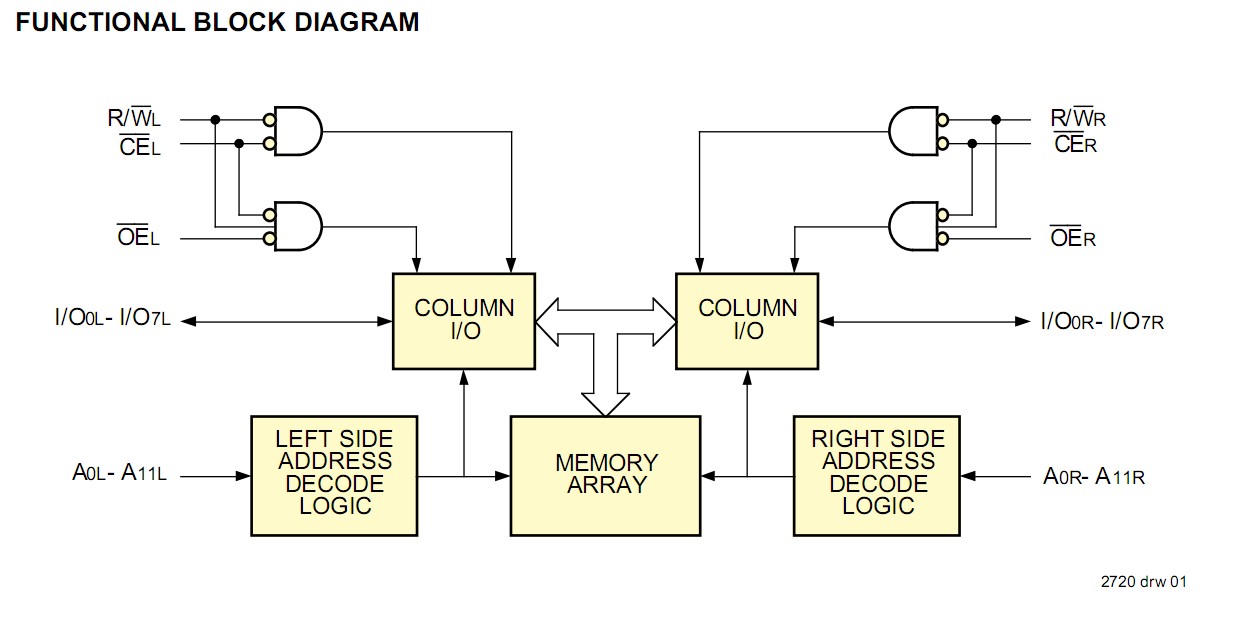

The IDT7134LA20PDG is a high-speed 4K x 8 Dual-Port Static RAM designed to be used in systems where on-chip hardware port arbitration is not needed. This part lends itself to those systems which cannot tolerate wait states or are designed to be able to externally arbitrate or withstand contention when both sides simultaneously access the same Dual-Port RAM location. The IDT7134LA20PDG provides two independent ports with separate control, address, and I/O pins that permit independent, asynchronous access for reads or writes to any location in memory.

Parametrics

IDT7134LA20PDG absolute maximum ratings: (1)Terminal Voltage with Respect to Ground: –0.5 to +7.0,–0.5 to +7.0 V; (2)Operating Temperature: 0 to +70℃, –55 to +125℃; (3)Temperature Under Bias: –55 to +125℃,–65 to +135℃; (4)Storage Temperature: –55 to +125℃, –65 to +150℃; (5)Power Dissipation: 1.5 W; (6)DC Output Current: 50 mA.

Features

IDT7134LA20PDG features: (1)High-speed access; (2)Low-power operation: Active: 500mW (typ.), Standby: 1mW (typ.); (3)Fully asynchronous operation from either port; (4)Battery backup operation—2V data retention; (5)TTL-compatible; single 5V (±10%) power supply; (6)Available in several popular hermetic and plastic packages; (7)Military product compliant to MIL-STD-883, Class B; (8)Industrial temperature range (–40 to +85℃) is available,tested to military electrical specifications.
