Product Summary

The HY27UF082G2A is a 256Mx8bit NAND flash with spare 16Mx8 bit capacity. The HY27UF082G2A is offered in 3.3V Vcc Power Supply. Its NAND cell provides the most cost-effective solution for the solid state mass storage market. The memory is divided into blocks that can be erased independently so it is possible to preserve valid data while old data is erased. The HY27UF082G2A contains 2048 blocks, composed by 64 pages consisting in two NAND structures of 32 series connected Flash cells.

Parametrics

HY27UF082G2A absolute maximum ratings: (1)TA, Ambient Operating Temperature (Temperature Range Option 1): 0 to 70℃; Ambient Operating Temperature (Industrial Temperature Range): -40 to 85℃; (2)TBIAS, Temperature Under Bias: -50 to 125℃; (3)TSTG, Storage Temperature: -65 to 150℃; (4)VIO, Input or Output Voltage: -0.6 to 4.6 V; (5)Vcc, Supply Voltage: -0.6 to 4.6 V.

Features

HY27UF082G2A features: (1)high density nand flash memories: cost effective solutions for mass storage applications; (2)nand interface: ×8 or ×16 bys width; multiplexed address/data; pinput compatibility for all densities; (3)supply voltage, VCC=2.7V to 3.6V; (4)memory cell array; (5)fast block erase: block erase time: 2ms typ; (6)status register.

Diagrams

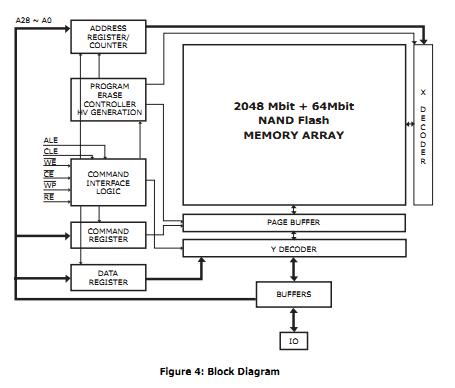

HY27UF082G2A block diagram
