Product Summary
The HMC383LC4 is a general purpose GaAs PHEMT MMIC Driver Amplifier housed in a leadless RoHS compliant SMT package. The amplifi er provides 15 dB of gain and +18 dBm of saturated power from a single +5.0V supply. Consistent gain and output power across the operating band make it possible to use a common driver/LO amplifi er approach in multiple radio bands. The RF I/Os are DC blocked and matched to 50 Ohms for ease of use. The HMC383LC4 is housed in a RoHS compliant leadless 4x4 mm package allowing the use of surface mount manufacturing techniques. The HMC383LC4 is ideal for use as a driver amplifier for: Point-to-Point Radios, Point-to-Multi-Point Radios & VSAT, Test Equipment & Sensors, LO Driver for HMC Mixers and Military & Space.
Parametrics
HMC383LC4 absolute maximum ratings: (1)Drain Bias Voltage (Vdd): +5.5 Vdc; (2)RF Input Power (RFin)(Vdd = +5.0 Vdc): +10 dBm; (3)Channel Temperature: 175℃; (4)Thermal Resistance (channel to ground paddle): 98℃/W; (5)Storage Temperature: -65 to +150℃; (6)Operating Temperature: -40 to +85℃; (7)ESD Sensitivity (HBM) Class: 1A.
Features
HMC383LC4 features: (1)Gain: 15 dB; (2)Saturated Output Power: +18 dBm; (3)Output IP3: +25 dBm; (4)Single Positive Supply: +5.0 V @ 100 mA; (5)50 Ohm Matched Input/Output; (6)RoHS Compliant 4x4 mm Package.

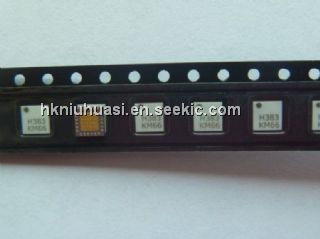

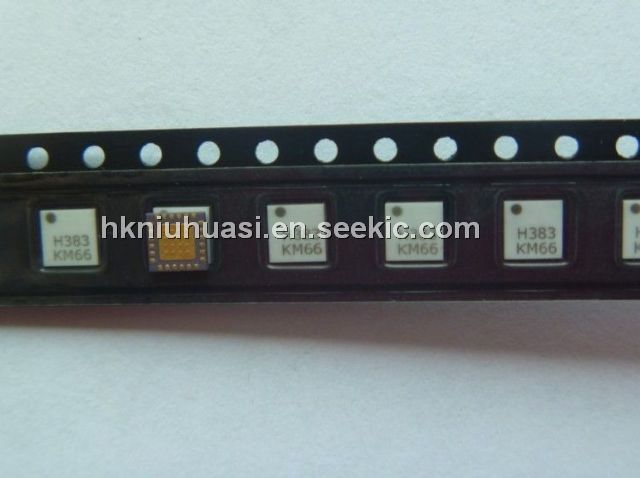

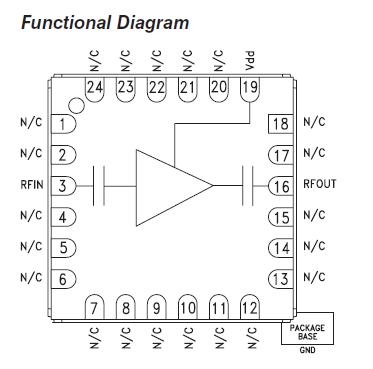

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 HMC383LC4 |
Other |
|
Data Sheet |
Negotiable |
|
||||
