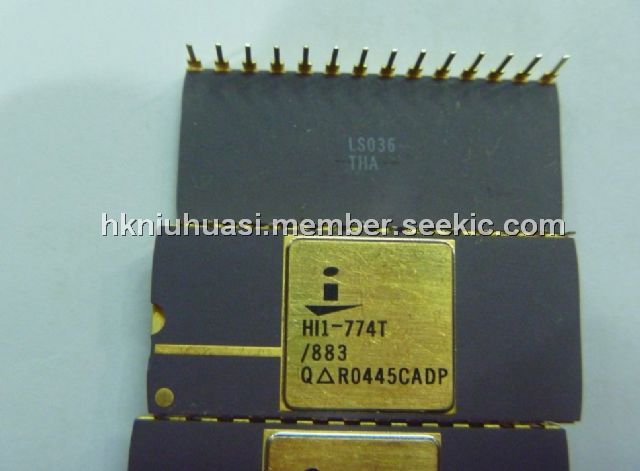

HI1-774T-883

Analog-to-Digital Converter, AUCDIP, 0V to +16.5V, 12-bit, HI1-774T-883

Rated 5 Rating 5 | reviews | Write a review

Price:: US $47.16~49.25 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $47.16~49.25

PartNumber:: HI1-774T-883

Brand:: Elantec Semiconductor - Intersil | Pack: DIP | D/C: 04+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Becky's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-11

From Other Seller

Part Number:HI1-774T-883
US $47.16 - 49.25
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
IRF9540NPBF

US $0.50 - 3.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

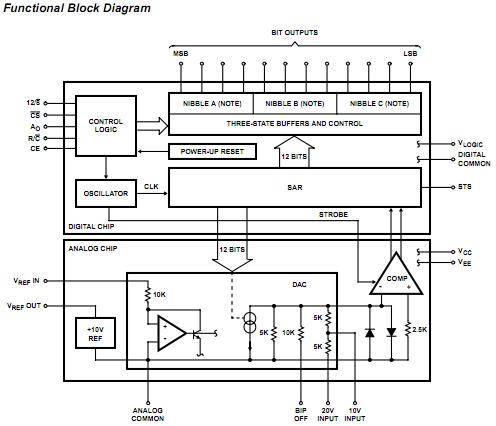

The HI1-774T-883 is a complete 12-bit, Analog-to-Digital Converter, including a +10V reference clock, three-state out-puts and a digital interface for microprocessor control. Successive approximation conversion is performed by two monolithic dice housed in a 28 lead package. The bipolar analog die features the Intersil Dielectric Isolation process, which provides enhanced AC performance and freedom from latch-up. The applications of the HI1-774T-883 are Military and Industrial Data Acquisition Systems, Electronic Test and Scientiﬁc Instrumentation and Process Control Systems.

Parametrics

HI1-774T-883 absolute maximum ratings: (1)VCC to Digital Common: 0V to +16.5V; (2)VEE to Digital Common: 0V to -16.5V; (3)VLOGIC to Digital Common: 0V to +7V; (4)Analog Common to Digital Common±1V; (5)Control Inputs: -0.5V to VLOGIC +0.5V; (6)Analog Inputs: ±16.5V; (7)20VIN to Analog Common: ±24V.

Features

HI1-774T-883 features: (1)Complete 12-Bit A/D Converter with Reference and Clock; (2)Full 8-Bit, 12-Bit or 16-Bit Microprocessor Bus Interface; (3)Bus Access Time: 150ns; (4)No Missing Codes Over Temperature; (5)Minimal Setup Time for Control Signals; (6)Fast Conversion Times; (7)Digital Error Correction (HI-774); (8)Low Noise, via Current-Mode Signal Transmission Between Chips; (9)Byte Enable/Short Cycle (AO Input); (10)Supply Voltage: ±12V to ±15V.
