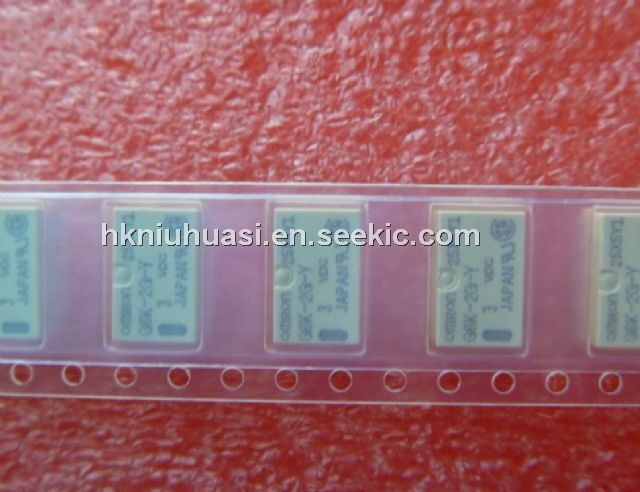

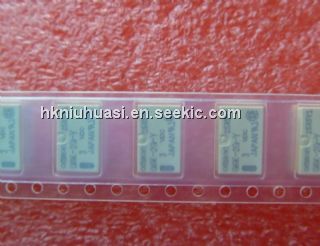

Product Summary

The G6K-2G-Y-3VDC is a Surface Mounting Relay. Applications include Telephones, communications equipment, measurement devices, office automation machines, and audio–visual products.

Parametrics

G6K-2G-Y-3VDC absolute maximum ratings: (1)Rated current: 33.0 mA; (2)Coil resistance: 91Ω; (3)Must operate voltage: 80% max. of rated voltage; (4)Must release voltage: 10% min. of rated voltage; (5)Max. voltage: 150% of rated voltage at 23℃ to 70℃; (6)Power consumption: Approx. 100 mW.

Features

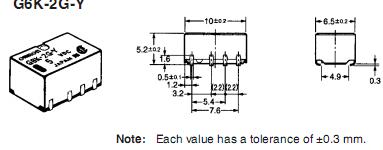

G6K-2G-Y-3VDC features: (1)Subminiature model as small as 5.2 (H) x 6.5 (W) x 10 (L) mm is ideal for high-density mounting; (2)Low profile of 5.2 mm and weight of only 0.7 g combine to improve mounting efficiency; (3)Models with inside-L surface mounting terminals are available; (4)Consumes approximately 70% the power of a conventional OMRON model and operates at a current that is as low as 100 mW.

Diagrams

G6K-2G-Y-3VDC circuit
